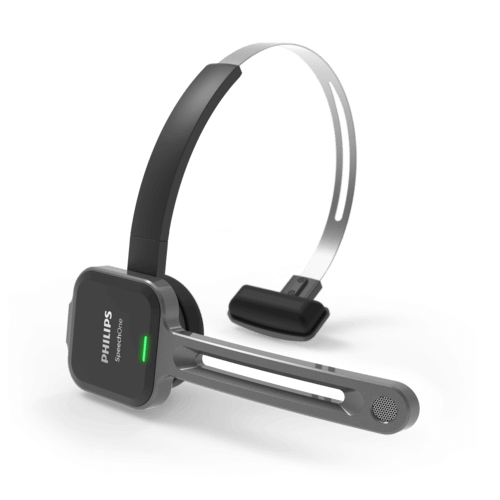

Philips PSM6300 SpeechOne

Use your new SpeechOne Wireless Dictation Headset without the docking station. Simply plug in the AirBridge Wireless Adapter into a USB slot and instantly benefit from lossless audio transmission. Despite its compact size, the adapter offers you the same lossless audio transmission technology as the docking station.

Studio-quality microphone

The professional microphone guarantees accurate speech recognition results and transcriptions, even in noisy environments. Decoupled microphone for crystal-clear recordings, designed for dictation and speech recognition.

Lossless wireless transmission

Move away from your workstation and still record wirelessly in superior quality compared to Bluetooth and DECT.

Maximum wearing comfort

The modern ergonomic design ensures comfortable working, even after many hours of use. With a 360 degree rotating boom arm the SpeechOne headset is wearable on the left or right ear.

All-day battery life

Benefit from a high-performance battery which lasts the entire work day. Up to 12 hours of recording time and 80% charge after 60 min using the wireless docking station.

Less interruption, more productivity

Reclaim control over your availability by clearly signifying to colleagues whether you are “available” or “busy”. The magnetic, mountable status light automatically turns red when recording or in a call.

Ultimate comfort, maximum hygiene

If you share a device with other authors, you can each have your own personal exchangeable cushions.

Take full control

The ergonomic remote allows you to conveniently control your recording application. The keys are freely configurable and can be personalized for any user and application.

Crystal-clear calls with Skype

Comfortably communicate via Skype in crystal-clear audio quality without any additional installations. Accept or reject calls via headset and Docking Station and adjust volume using the scroll wheel on the headset.

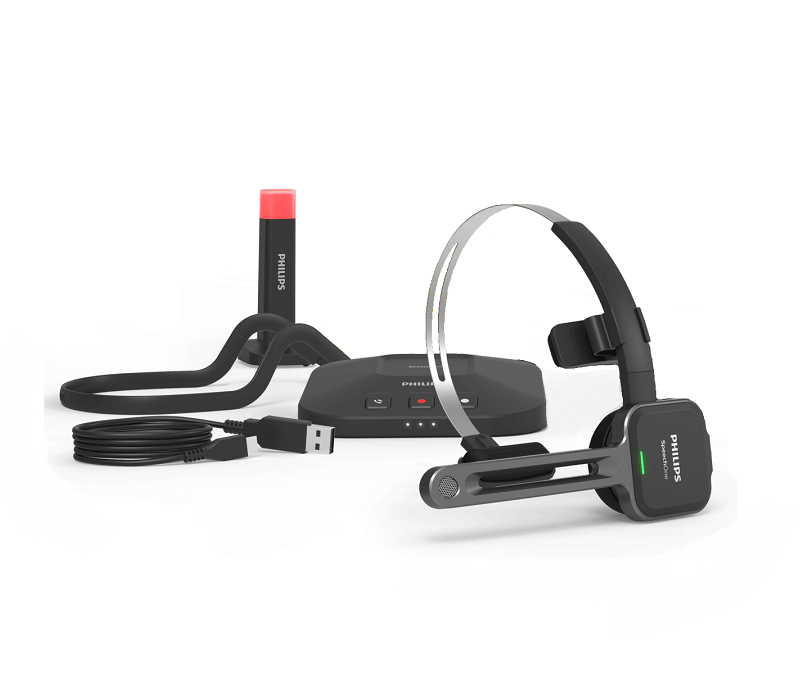

• Philips SpeechOne Wireless Dictation Headset
• Philips ACC6000 Docking Station and Status Light
• USB cable
• Neckband
• Headband attachment
• one magnetic ear cushion
• two magnetic head cushions
• Quick start guide

Audio recording

Microphone type: electret condenser microphone

Microphone capsule:10 mm

Characteristic: uni-directional

Frequency response:150 – 15 000 Hz

Sensitivity:-37 dBV

Signal-to-noise ratio:> 70 dBA

Sound

Speaker type: built-in round, dynamic speaker

Speaker diameter:23 mm

Acoustic frequency response:300 – 7500 Hz

Speaker output power:> 200 mW

Wireless connectivity

Technology: 2.4 GHz ISM Band

Modulation:8-FSK

Operating range: up to 5 m / 16 ft (in clear view)

Power

Battery type: Li-polymer built-in battery

Battery capacity:360 mAh

Battery lifetime: up to 12 hours of recording

Standby time:> 100 hours

Rechargeable: wireless via docking station or micro USB cable

Charging time (wireless): 80% after 60 min, approx. 2 hours for full charge

Convenience

Wearing styles: classic, ear-free, neckband

360 degree adjustable boom arm

Headset wearable on left or right ear

Voip calls with Skype for Business

Voice prompts in 10 languages for easy guidance (pairing, battery status, radius of movement)

Hands-free dictation with Philips Foot Controls ACC2310, ACC2320, ACC2330

Docking station with Kensington lock theft protection

Headset controls: scroll wheel for recording and volume control

Docking station controls: accept/reject Skype call, start/stop recording, busy/available

Remote control: touch sensor with mouse function, record light incitation, freely configurable keys

Status light with flexible, rotating magnetic mounting system

System requirements

Processor: Intel dual core or equivalent AMD processor, 1 GHz or faster processor

RAM: 2 GB (32 bit)/4 GB (64 bit)

Hard-disk space: 100 MB for SpeechExec software, 30 MB for SpeechControl software, 4.5 GB for Microsoft .NET Framework

Operating system: Windows 11, Windows 10 (64 bit), macOS 12/11 (Mac functionality may be limited)

Graphics: DirectX-compliant graphics card with hardware acceleration recommended

Sound: Windows-compatible sound device

Browser: Internet Explorer 9 or higher, or the current version of Chrome or Firefox

Free USB port

SpeechExec: Internet connection for required software activation

Additional system requirements for speech recognition software

Supported speech recognition software:

Nuance Dragon Professional 13/14/15 Individual/Group, Nuance Dragon Legal 13/14/15, Dragon Medical Practice Edition 3.x/4.x, Nuance Dragon SDK Client Edition 14, M*Modal Fluency Direct 8.0 and above, M*Modal Fluency for Imaging 3 and above, Fusion Narrate powered by nVoq

Processor: Intel dual core or equivalent AMD processor, 2.2 GHz or faster processor

RAM: 4 GB (32 bit)/8 GB (64 bit)

Hard-disk space: 8 GB

Green specifications

Compliant to 2011/65/EU (RoHS)

Lead-free soldered product

Certifications: CE, FCC, C-Tick (Australia and New Zealand)

Operation conditions

Temperature: 5° – 45° C / 41° – 113° F

Humidity: 10 % – 90 %

Design and finishing

Material: high-class polymers

Color: black

Product dimensions and weight

Headset (incl. headband and cushions): 155 × 150 × 140 mm / 6.1 × 5.9 × 5.5 in, 81 g / 2.6 oz

Docking station: 120 × 120 × 32 mm / 4.7 × 4.7 × 1.3 in, 395 g / 13.94 oz

Remote control: 157 × 45 × 32 mm / 6.2 × 1.8 × 1.3 in, 78 g / 2.8 oz

Status light: 36 × 36 × 98 mm / 1.4 × 1.4 × 3.9 in, 58 g / 2.1 oz

Magnetic ear cushion:5 0 mm / 2 in

Magnetic head cushions: 48 × 12 mm / 1.9 × 0.5 in

• Philips SpeechLive – 12-month subscription – cloud solution
• PhilipsACC6000 Dock and Status Light
• Philips ACC6100 Remote Control
• Philips ACC6001 one magnetic ear cushion + two magnetic head cushions
• Philips ACC4100 AirBridge Wireless Adapter USB Drive
• Philips LFH4412 SpeechExec Pro Dictate V12 – Two year licence
• Philips LFH7277 Digital Transcription Kit
