Philips DPM8000 Professional Dictaphone

Features

3D Mic system for best audio quality and accurate speech-recognition results

The breakthrough 3D Mic technology uses the built-in microphones to always deliver best recording results: an omnidirectional microphone offering 360 degree sound pick-up, ideal for the recording of multiple sound sources such as meetings, and a unidirectional microphone optimized for voice recording and accurate speech-recognition results.

Built-in motion sensor for automatic microphone selection

The built-in motion sensor senses when the device is placed on the desk or held in the hand and selects the microphone accordingly to suit the recording situation. The motion sensor switches automatically into standby mode when the device is idle. Once the Pocket Memo is picked up again, it’s ready to record within seconds.

Ergonomic slide switch for efficient single-handed operation

The quick-response and ergonomic slide switch is designed for singlehanded operation of all recording and playback functions, allowing easy and quick file editing (insert, overwrite, append). It operates with a light sensor signal, making it wear-free and durable.

Robust stainless steel casing for extra durability

The asymmetrical and ergonomic shape fits perfectly into your hand. Its slim and lightweight design maximizes comfort, even when working over longer periods of time. The brushed stainless steel creates a robust and highly durable protective shell around the device. The device is shockproof according to US military standard 516.6.

SpeechExec workflow software for efficient data management

The SpeechExec Pro software organizes the workflow of dictation files and resulting documents between author and transcriptionist, and allows you to monitor the status of your work.

Large color display and clear user interface for easy, intuitive operation

The large full-color display offers sharp images, making it easier to see everything at first glance. The clear user interface is optimized for easy, intuitive operation.

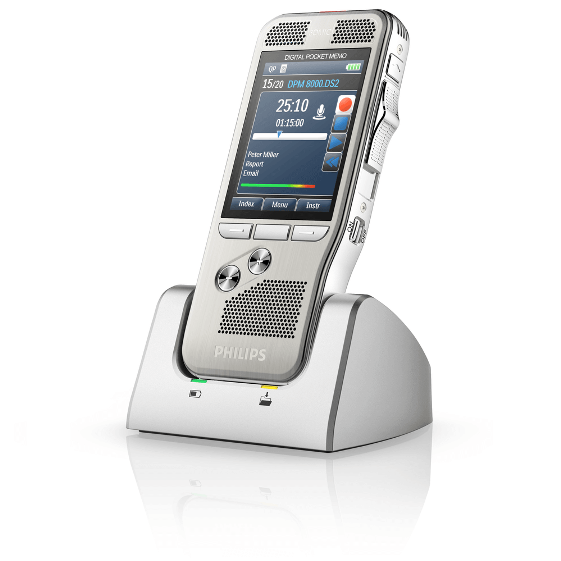

Docking station for fast battery charging and hands-free recording

The stable and superior docking station provides speedy charging and automatic transfer of your recording to your computer. With an optional foot control connected, the docking station enables hands-free recording and transcription even without a computer.

Light and motion sensors for extended battery life

The high-capacity Li-ion battery can be easily charged through a standard micro USB jack. The integrated light and motion sensors guarantee extended battery life. The smart technology adjusts the brightness of the display and switches automatically into stand-by mode when the device is idle, ensuring that your recorder will always be ready to work when you are.

File encryption and device PIN lock for high data security

Recordings can be encrypted in real time using the Advanced Encryption Standard (AES or Rijndael Algorithm) with a key length of 256 bits. AES provides a very high degree of security and has been approved in the USA for the most highly classified government information. The device itself can be assigned a PIN code to protect against unauthorized use or file playback.

Remote management support for time-saving deployment and maintenance

The Philips SpeechExec Remote Device Manager software allows IT administrators to centrally manage, configure and update dictation hardware from Philips, saving valuable time and resources. Managing device settings for individuals, groups and teams or the whole organization is easily done remotely.

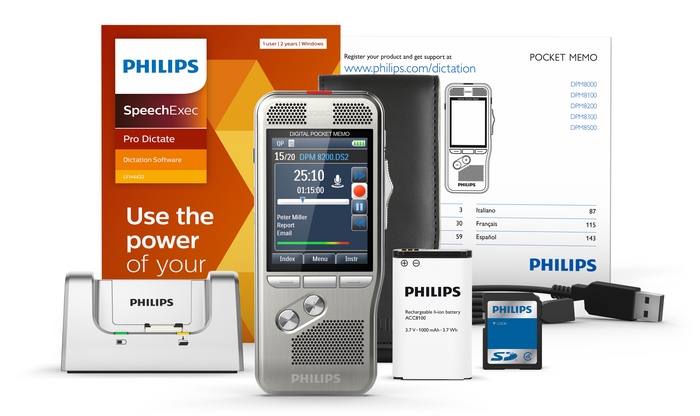

• Philips DPM8000 premium digital dictaphone
• Philips LFH4412 SpeechExec Pro Dictate v12 software – Two Year Licence
• Philips ACC8120 docking station
• 16 GB SD card
• Philips ACC8100 rechargeable battery
• USB – micro USB 2.0 cable
• Carry case
• User Manual

Connectivity

Headphones: 3.5 mm

Microphone: 3.5 mm

USB: micro USB 2.0

Docking connector

Memory card slot

Display

Type: color TFT

Diagonal screen size: 2.4 inches / 6.1 cm

Resolution: 320 × 240 pixels

Storage media

Exchangeable memory card

Memory card types: SD/SDHC (DPM8000, DPM8200), micro SD/SDHC (DPM8500), up to 32 GB

Mass storage class compliant

Data transfer speed: 6.75 MB/s read speed, 5.0 MB/s write speed

Audio recording

Recording format: DSS/DSS Pro (Digital Speech Standard), MP3, PCM

Built-in microphones: 1 directional microphone, 1 microphone for 360 degree recording

Recording modes: DSS QP (.ds2/mono), DSS SP (.dss/mono), MP3 (.mp3/stereo), PCM Voice (.wav/mono), PCM Stereo (.wav/stereo)

Bit rate: 13.7 kbit/s (DSS SP), 28 kbit/s (DSS QP), 192 kbit/s (MP3), 353 kbit/s (PCM Voice), 705 kbit/s (PCM Stereo)

Edit modes: insert (DSS/DSS Pro), overwrite (DSS/DSS Pro, MP3, PCM), append (DSS/DSS Pro, MP3, PCM)

Recording time (4 GB memory card):700 hours (SP), 350 hours (QP), 50 hours (MP3), 27 hours (PCM Voice), 13 hours (PCM Stereo)

Sample rate: 44.1 kHz (MP3), 22.05 kHz (PCM), 16 kHz (DSS QP), 12 kHz (DSS SP)

Sound

Speaker type: built-in round, dynamic speaker

Speaker diameter: 28 mm

Acoustic frequency response: 300 – 7500 Hz

Speaker output power: > 200 mW

Power

Battery type: Philips rechargeable Li-ion battery ACC8100

Battery capacity: 1000mAh

Battery lifetime: up to 30 hours of recording (DSS Pro mode)

Standby time: more than 200 days

Charging time (full charge): 3 hours

Security

Real time file encryption

Encryption standard: Advanced Encryption Standard (AES or Rijndael Algorithm) with 256 bits

Device lock with pin code

User identification via PIN code

Number of supported user IDs:40

Durability

MIL-STD-810G 516.6 certified for shock resistance

Green specifications

Compliant to 2011/65/EU (RoHS)

Lead-free soldered product

Operation conditions

Temperature:- 5° – 45° C/23° – 113° F

Humidity: 10 % – 90 %, noncondensing

Dimensions

Product dimensions (W × D × H): 53 × 123 × 15 mm / 2.1 × 4.8 × 0.6 inches

Weight: 117 g/4.1 oz including battery and memory card

• Philips SpeechLive – 12-month subscription
• Philips LFH7277 Digital Transcription Kit
• Philips LFH2210 – foot pedal for hands free dictation
• Philips ACC8100 rechargeable Li-ion battery
• Philips ACC8120 docking station
• Philips LFH9173 tie clip microphone
• Philips LFH9162 telephone pickup microphone
• Philips LFH9172 boundary microphone
