OM System Recording Small Groups Bundle

High Quality Voice Recording

Superb stereo feeling with True Stereo Microphones

Two low-noise directional microphones positioned at a 90° layout enables high quality recording in a realistic stereo feeling. This feature ensures that you capture even the direction and the distance of the speakers in a meeting.

Low-cut filter eliminates extraneous noise

During recording, the low-cut filter is used to cut the sound at frequencies of 300 Hz and lower, typical examples being the sound of air conditioner or projector fans. This filter also proves effective when recording with wind blowing outside. By cutting the lower frequency during recording ensures natural sounding without distortion while playback. You can select ON or OFF according to your option.

Automatic sensitivity adjustment with Intelligent Auto Mode

The Intelligent Auto Mode function automatically adjusts the microphone sensitivity according to the input level. For example, when you record the voice of a person far away in a large meeting room, the input level tends to be lower. For this case, the recorder automatically raises the sensitivity of the microphone making them easier to hear. On the other hand, when you record in a smaller meeting room with only a few people, the sensitivity is automatically lowered, so that the voice of the speakers close by do not sound too loud. In this way, the function automatically keeps track of the input level and simultaneously adjust the recording level so that it always records in the best quality. This ensures that the recording remains consistent not having speakers too quiet or too loud. To set this function, simply select “Auto” for the recording level from the menu. When low, the sensitivity is raised When high, the sensitivity is lowered

• If you select “Meeting” for the recording scene while in Simple Mode, Intelligent Auto Mode is activated.

• OM System WS-883 digital voice recorder
• 2 x AAA rechargeable batteries (Olympus BR-404)
• ME33 Boundary microphone with 2m cable
• Splitter (3.5mm audio plug with two 3.5mm audio jacks - for connecting multiple microphones to the recorder.
• Instructions

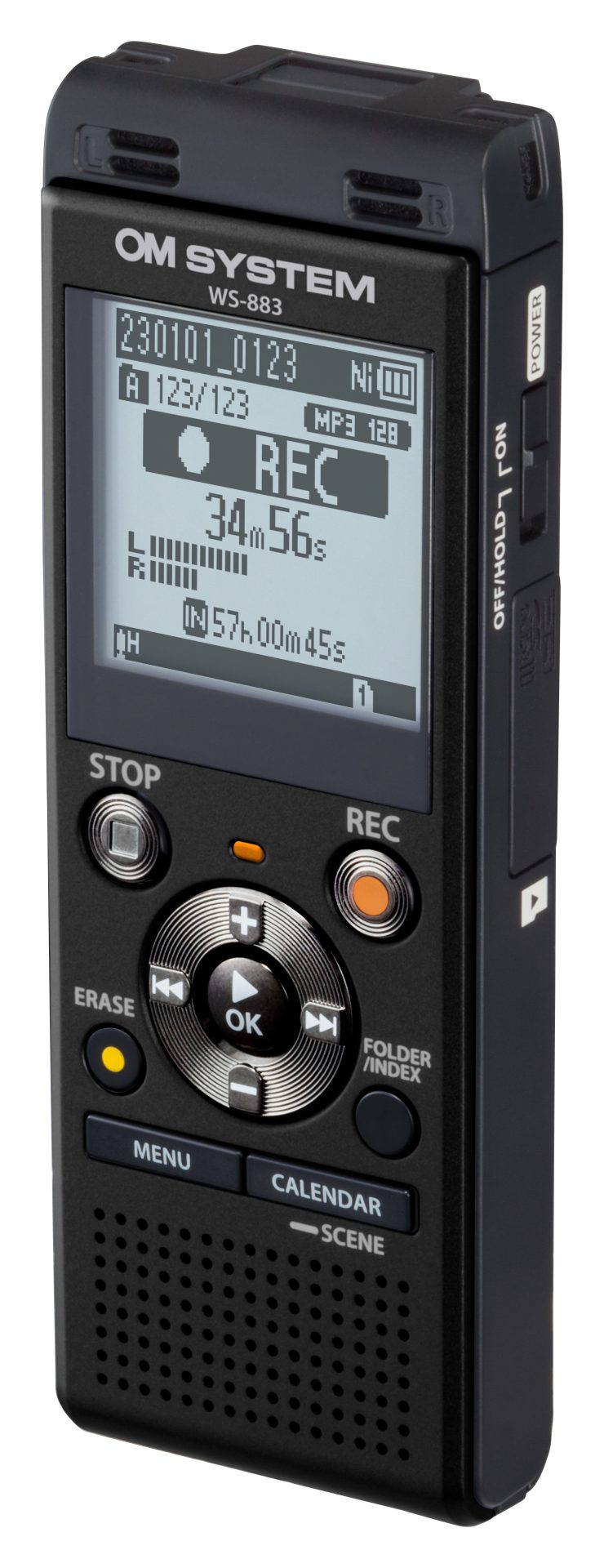

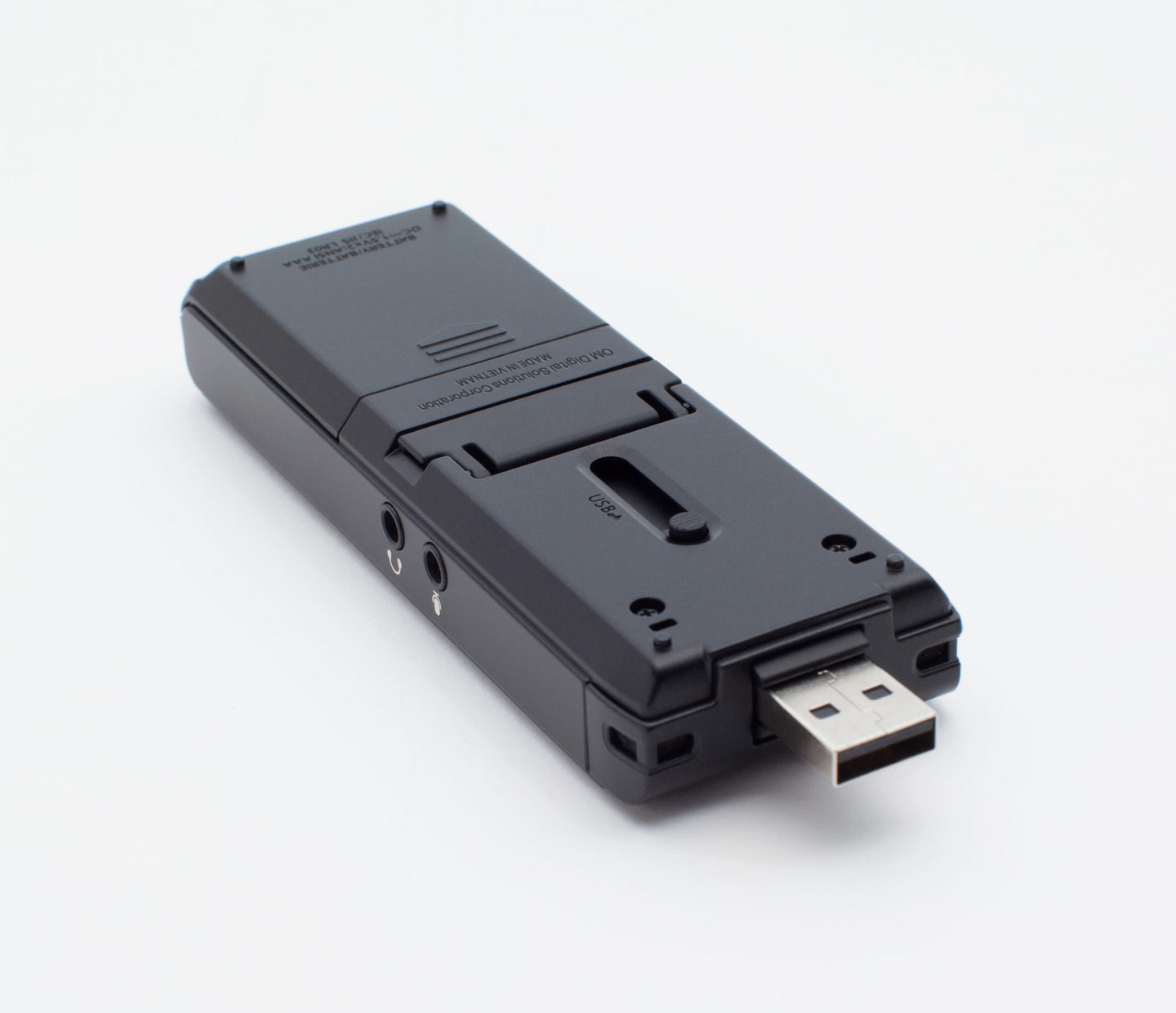

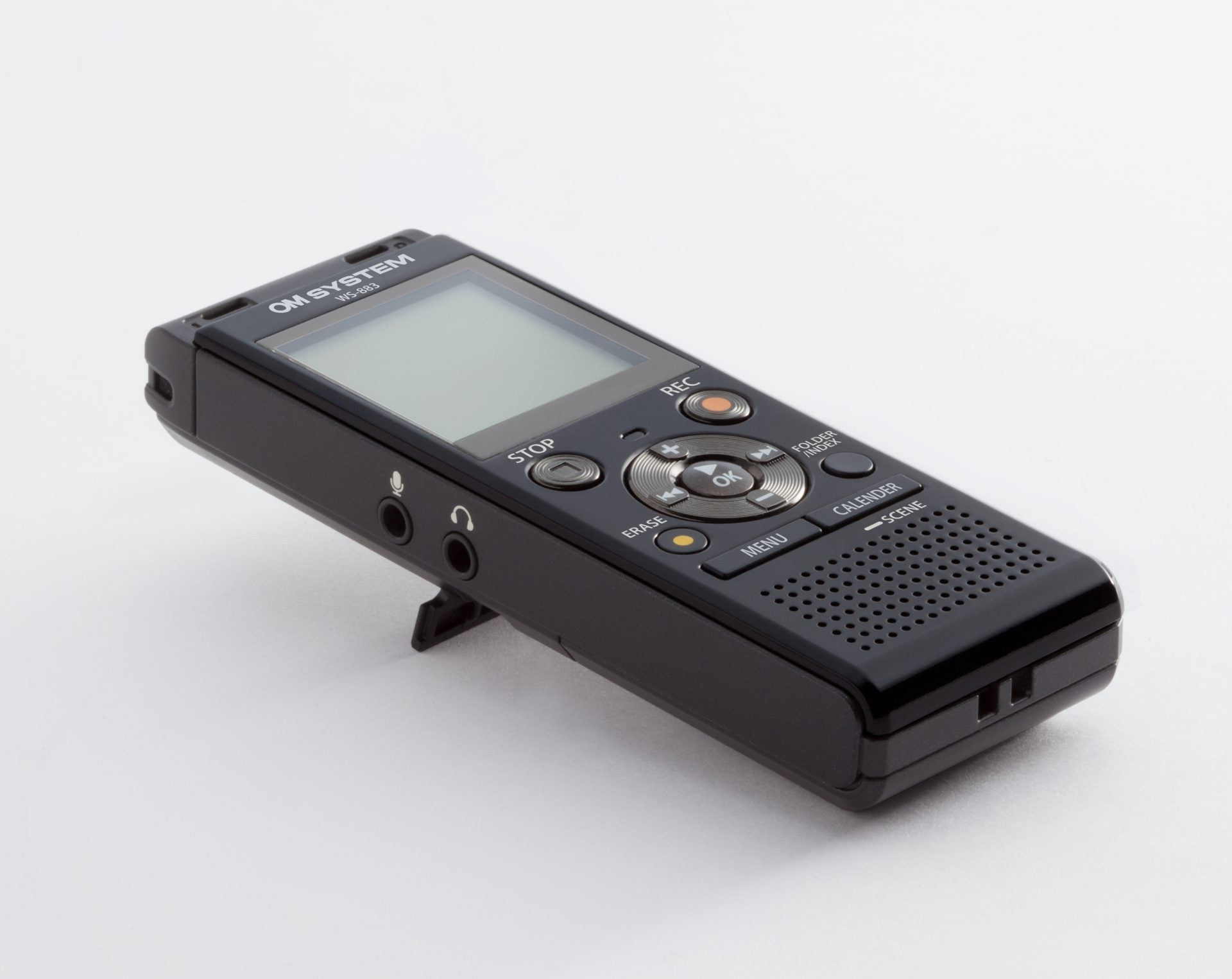

WS-883

• Clear, high quality stereo audio recording elimination extraneous noise
• Linear PCM recording capability for even clearer recording
• Comprehensive recording and playback functionality
• Wide variety of applications, from education to business
• Light weight (77 grams)

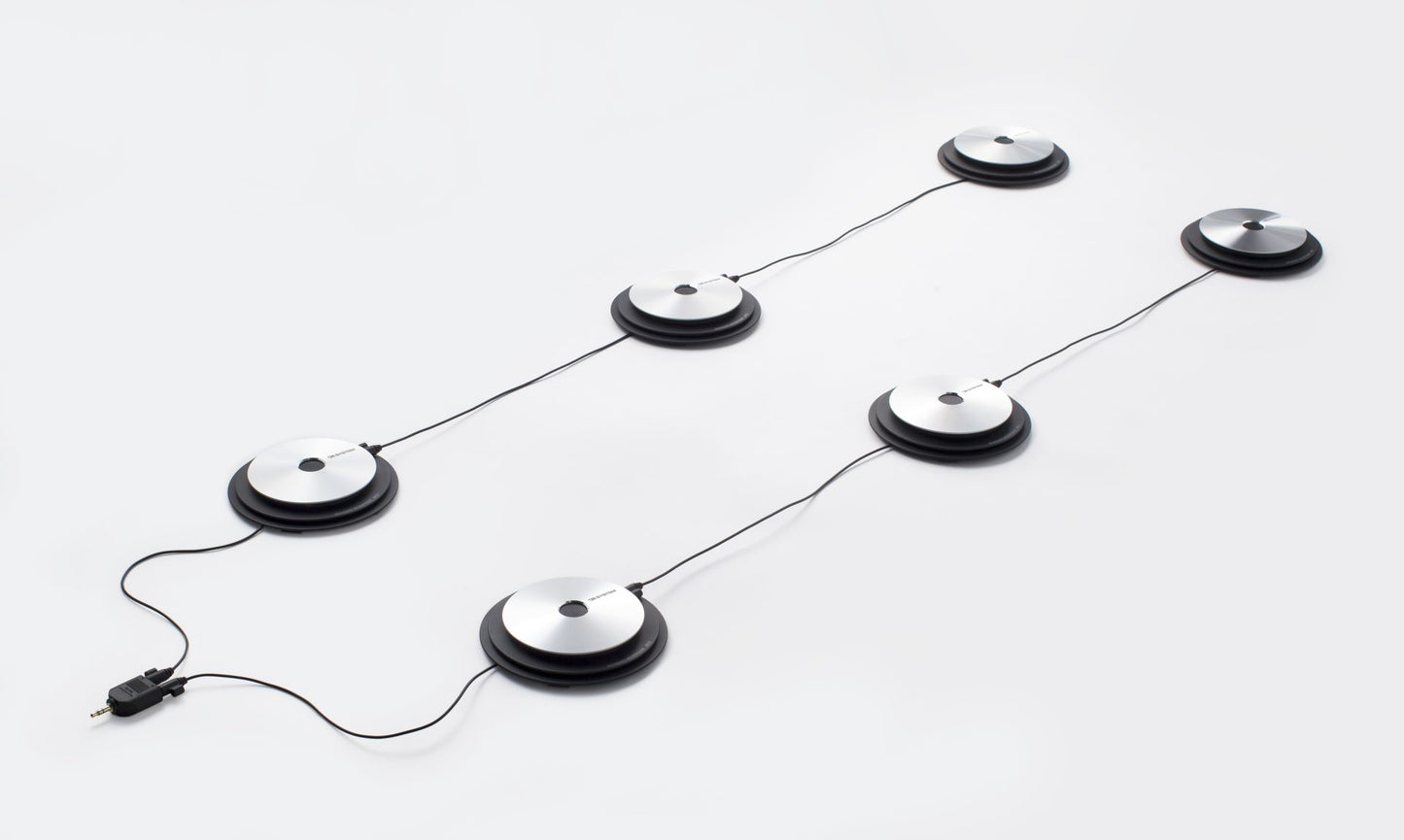

ME33
Type: Electret condenser type

Directionality: Omnidirectional

Frequency response: 70 – 10,000Hz

Sensitivity: – 35dB at 1kHz (0 dB = 1V/Pa)
There may be cases of loss of sensitivity when connecting more than 2 microphones to each channel.

Output impedance: 2.2kΩ

Power supply: Plug-in-power system (1.5V – 5V)

Cord length: 2 m (6.56ft)

Plug type: ø3.5 mm 3-pole mini-plug (monaural)

Jack type: ø3.5 mm 3-pole mini-jack (monaural)

External dimensions: ø120 mm x 23 mm (without protrusions)

Weight: Approx. 110 g

Included: Adapter (PA10)

Performance precautions
• Use only with a recorder that can supply power to
external microphones.

• If you are using the ME33 microphone with a recorder
not made by OLYMPUS, we cannot guarantee the
specified sensitivity.

• Read manuals of the recorder you connect the
microphone with.

• Plugging in-and-out while recording will cause
malfunction or noise.

• As noise may affect surrounding electronic equipment, disconnect the ME33 microphone from the recorder when making the connection of the recorder to a computer.

Precautions

• For safety, do not leave this product within the reach
of infants and children.

• Do not disassemble the microphone.

• Do not subject the microphone to excessive shock.

• Avoid use or storage for long periods of time in
extremely hot and/or humid place.

Additional OM System ME33 Boundary Microphone
