OM System Premium Recording Bundle

The DS-9100 offers advanced features such as superior audio beam forming noise
cancellation, 256-BIT AES file encryption, streamlining workflow and enhancing dictation
management efficiency. Its intelligent dual microphones effectively prioritize the speaker’s
voice and suppress ambient noise in various settings such as offices and hospitals. The triple layer studio-quality filter guarantees precise voice capture whilst minimizing unwanted sounds
such as breath and wind vibrations. This results in superior accuracy, ultimately improving
workflow efficiency.

• Intelligent Dual Noise Cancelling Microphones with Audio Beamforming.
• Low noise omni-directional microphones. The shock absorber reduces chassis and touch noise.
• Alcohol Resistance for ease of cleaning.
• Full editing features such as Insert, Overwrite and Partial Erase.
• Flexible recording options with DSS, PCM and MP3.
• Up to 56 Hours use with the rechargeable Li-Ion Battery.
• 2GB built-in memory and SD Card slot (up to 32GB).
• Up to 10 Author ID’s and Worktypes.

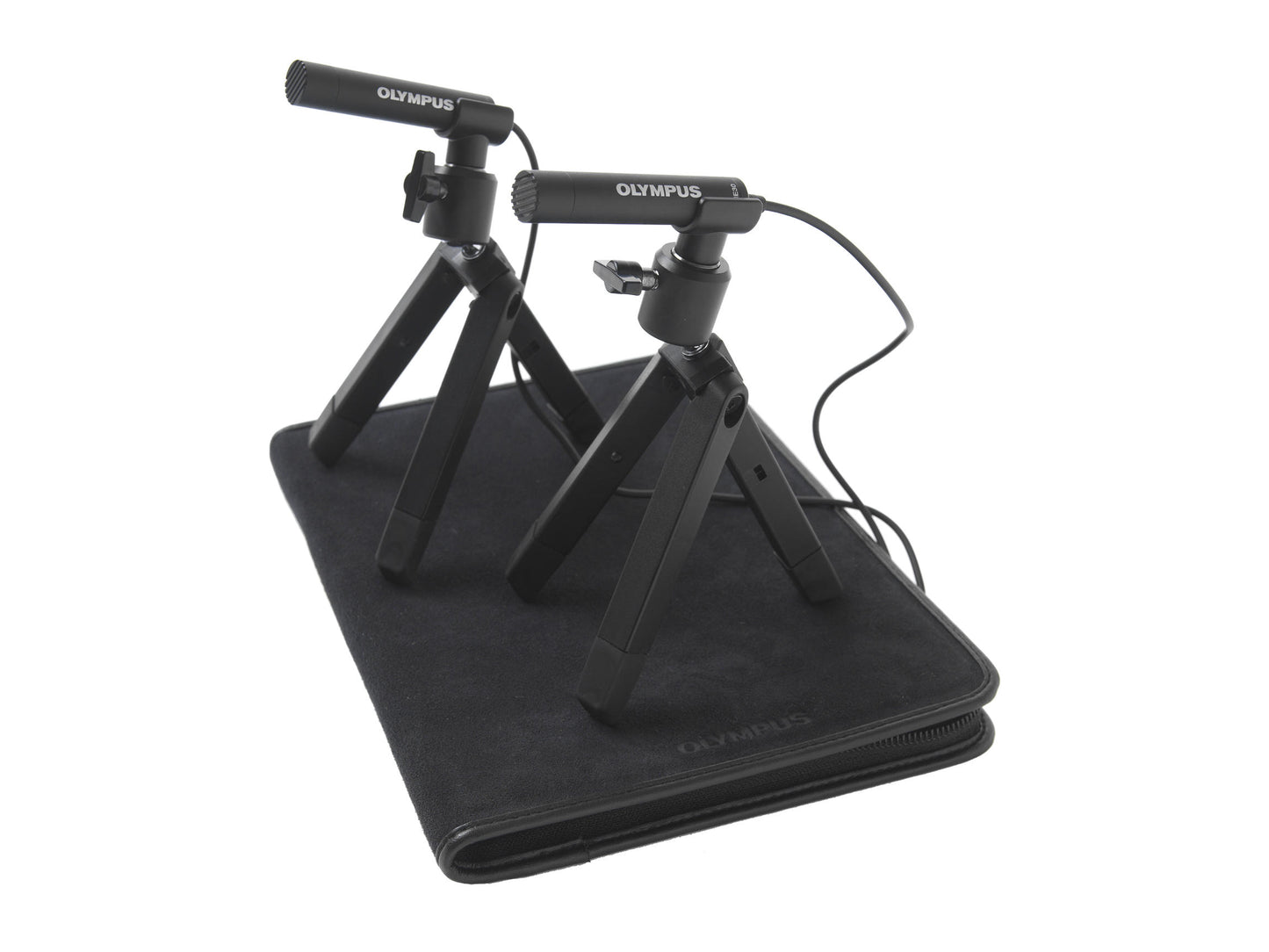

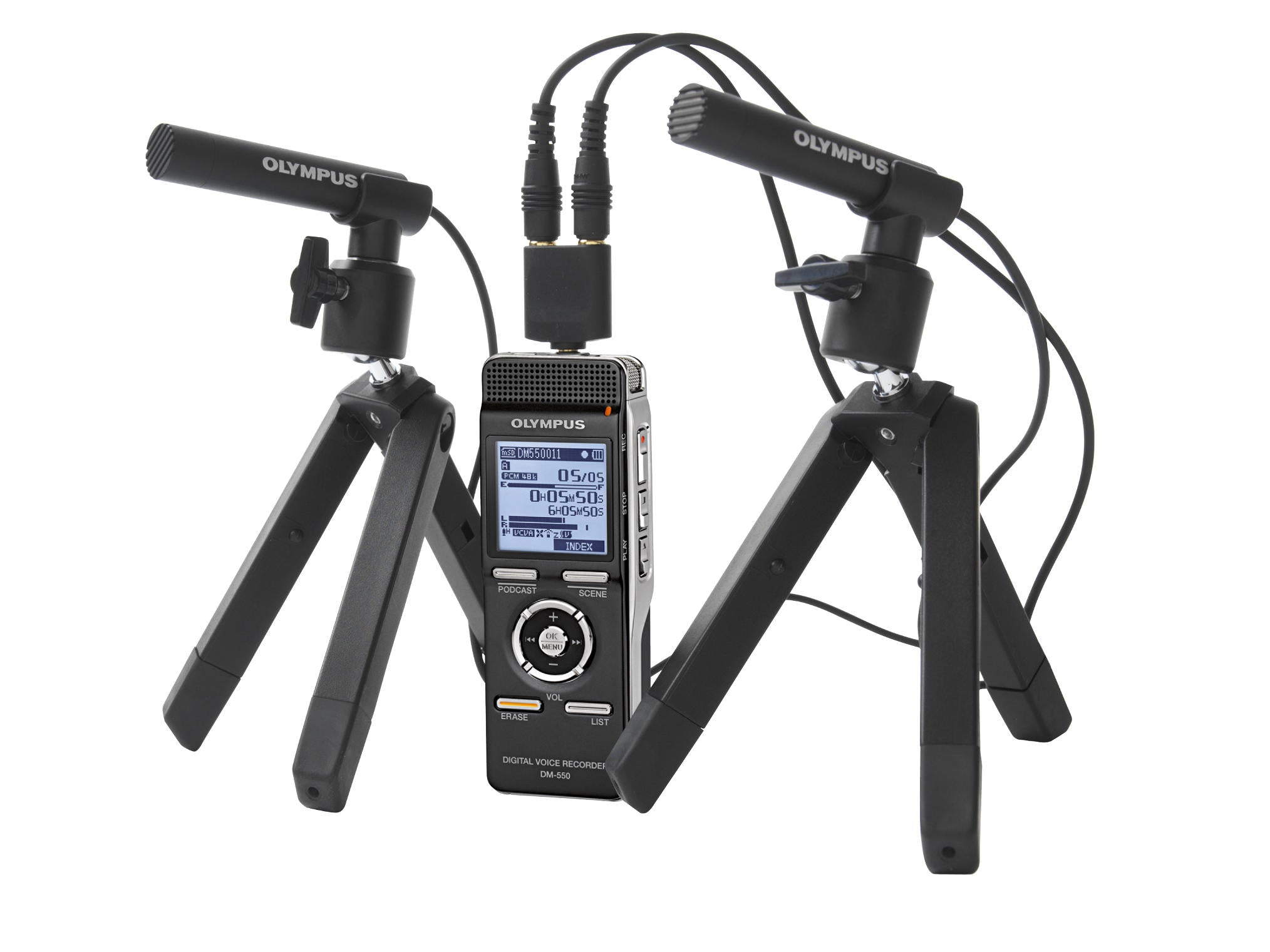

The ME30W 2-Channel Professional Microphone Kit

Features

• The right and left channel microphones may be placed up to 5 m (16 ft.) apart, suitable for
  conference recording in large rooms
• Employs a low noise, high quality microphone element covering a 20 Hz - 20,000 Hz frequency bandwidth, and can therefore be used for
  recording musical performances as well as conferences.
• Can be attached to the foldable
  mini tripod (TR1) stand adapter and placed on a conference table.
• Plug in power system.



• OM System DS-9100 Professional Digital Dictaphone
• OM System Li-92B Rechargeable Lithium Battery
• OM System AS-R801 Olympus Dictation Management System R8 (ODMS) Dictation Software (for Windows)
• OM System KP30 Micro USB cable
• OM System F-5AC AC Adapter for Audio
• User manual

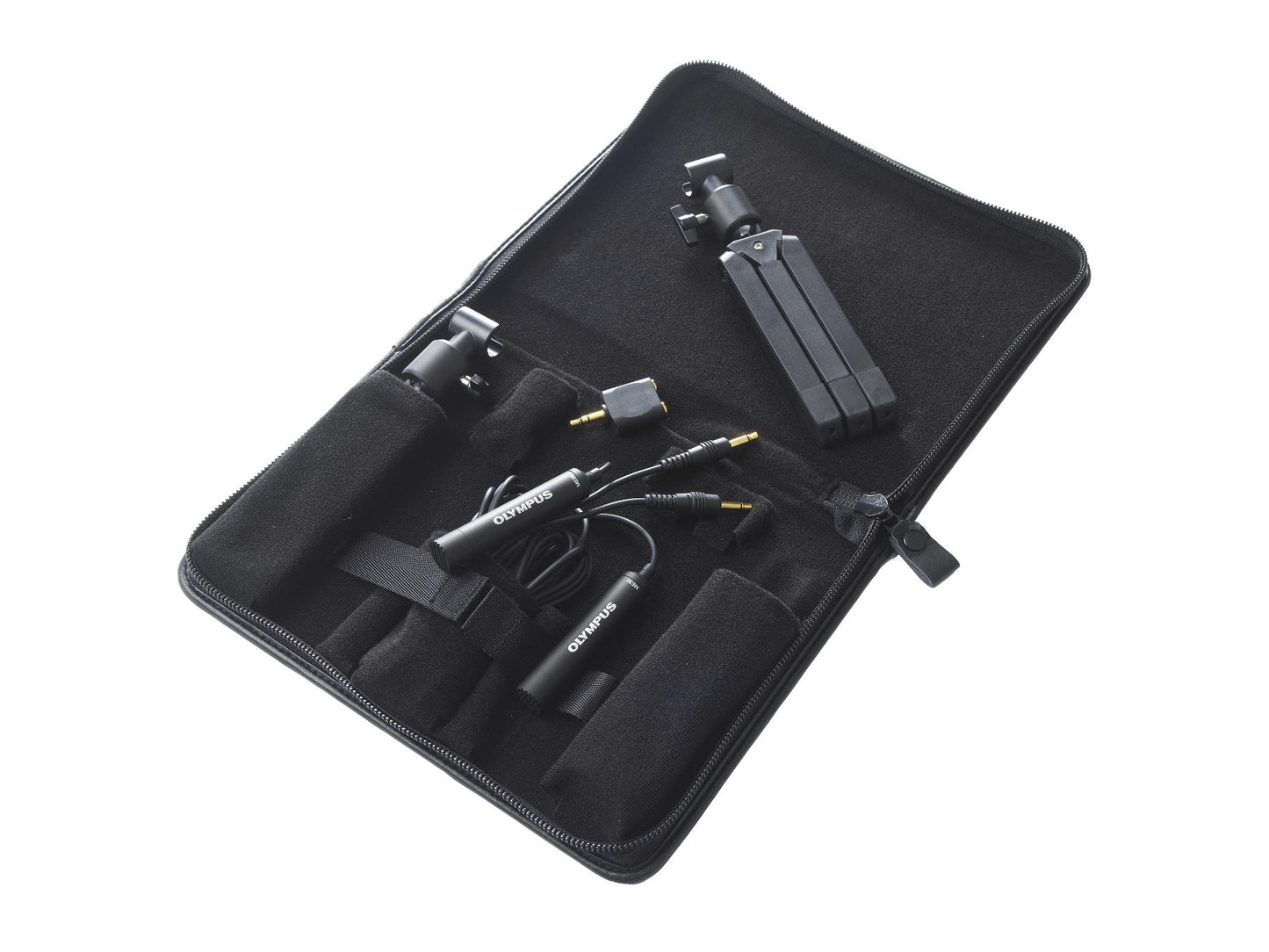

• OM System CS-151 Carry Case
• OM System ME30W Two-channel Microphone Kit
• Microphone cable splitter

DS-9100 Specifications

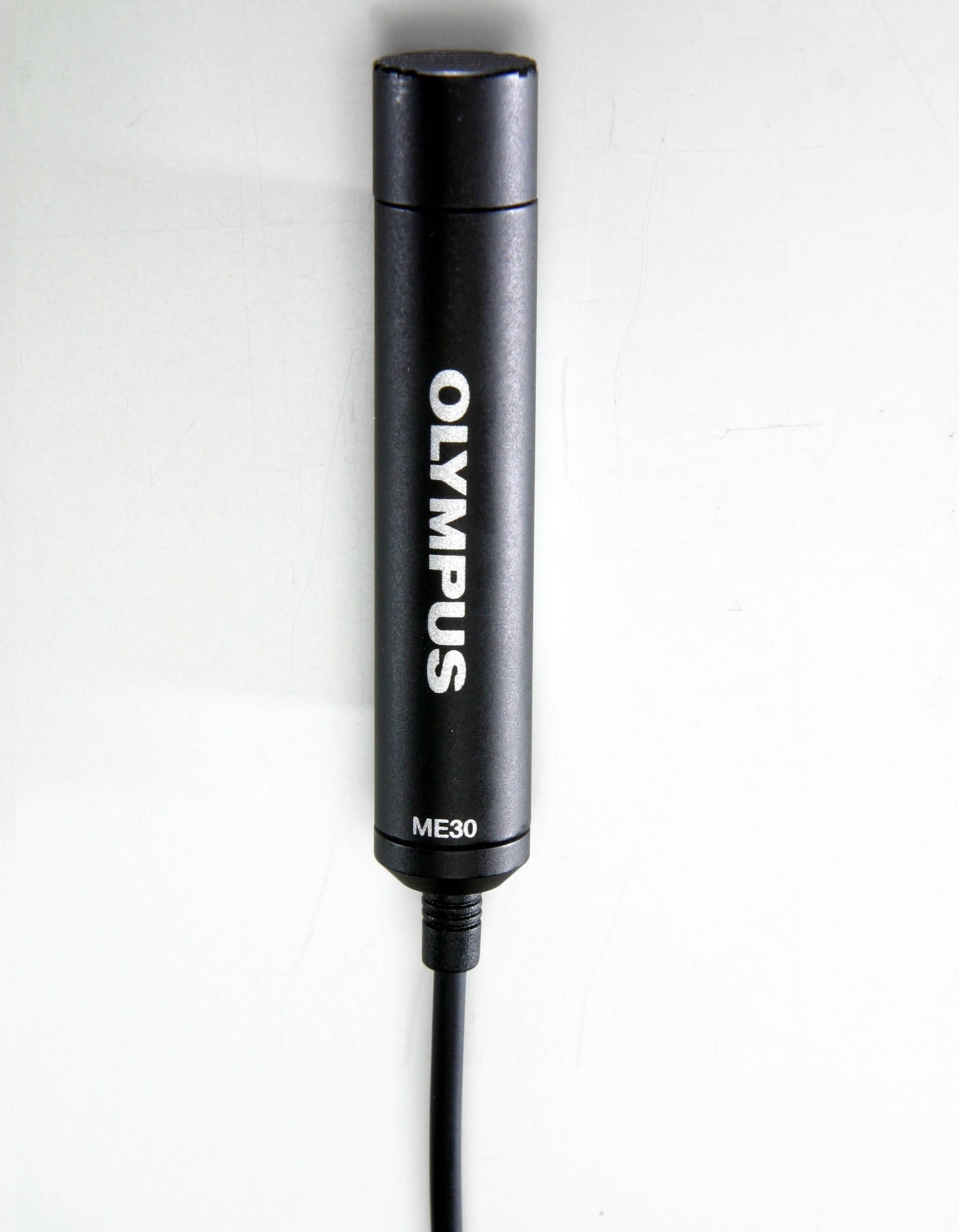

ME30W Omni Directional two channel microphone kit

Specifications

• Type: Electret condenser microphone (ME30) x2
• Directionality: Omni-directional
• Frequency response: 20 – 20,000 Hz
• Sensitivity: -38 dB at 1 kHz (0 dB = 1 V/Pa)
• Output impedance: 1.9 kΩ
• Power supply: Plug-in-power system (1.5 V – 9 V)
• Output Plug Type: ø3.5 mm mini plug (Monaural)
• External dimensions: ø12.2 mm (greatest dimension) x 64 mm
• Cord length: 2.5 m
• Weight: Approx. 54 g (microphone only)
• Included: Carrying case, Mini-tripod (TR1) x 2, Adapter (PA8)

Performance Precautions

・Not suitable for specific sound recording applications such as voice recognition recording.
・Do not use this microphone with any recorder that cannot supply power to an external microphone.
・If you are using this microphone with a recorder not made by OLYMPUS, we cannot guarantee the
specified sensitivity.
・Read manuals of the device you connect the microphone with.
・Plugging in-and-out while recording will cause malfunction or noise.
・As noise may affect surrounding electronic equipment, disconnect the ME30 when making connections to a recorder or computer.

Precaution

・For safety, do not leave this product within the reach of infants and children.
・Do not disassemble the microphone.
・Do not subject the microphone to excessive shock.
・Avoid use or storage for long periods of time in extremely hot and/or humid place.
・Do not bend or twist the plug part forcibly
