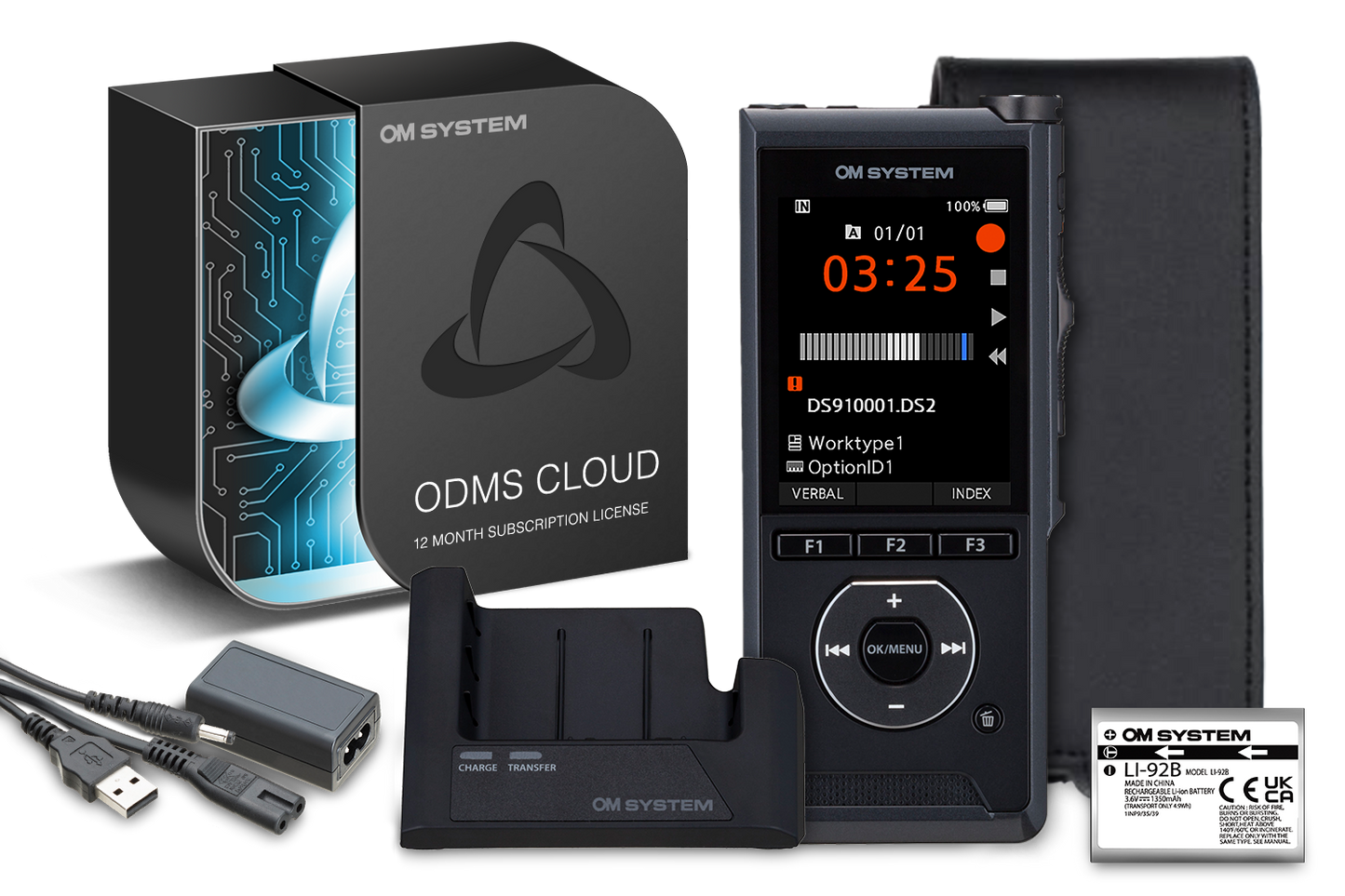

The DS-9100 professional dictaphone kit features advanced noise cancellation and 256-bit AES file encryption, streamlining workflow and enhancing dictation management. Its dual microphones prioritize the speaker’s voice, using beam forming technology to reduce ambient noise. With a triple-layer studio-quality filter, it ensures precise voice capture while minimizing unwanted sounds, resulting in superior accuracy and improved workflow efficiency.
The DS-9100 is designed for easy operation with an intuitive interface and a large color LCD screen. It includes built-in memory for storage, expandability via SD card media for additional capacity, and support for additional microphones and headphones.
ENHANCED SECURITY
Audio file security is crucial for medical and legal industries due to the sensitive nature of the information they handle. In healthcare, patient confidentiality is paramount to comply with HIPAA regulations, safeguarding patient data from unauthorized access. Legal industries require secure handling of client communications and evidence to maintain attorney-client privilege and uphold the integrity of legal proceedings. Ensuring audio file security protects sensitive information, maintains trust, and prevents legal liabilities.
The DS-9100 provides added security with 256-BIT AES encryption* when utilized alongside the DSS Pro file format, ensuring user data remains protected from unauthorized access, enhancing confidentiality, and complying with industry standards for secure audio recording.
The DS-9100’s Device Lock feature secures data with a 4-digit PIN, keeping it inaccessible to unauthorized users. Its data loss prevention function activates a read-only mode when connected to a PC, preventing accidental data copying, enhancing security.
Headphones can be connected to monitor or playback your recordings. Additional microphones such as boundary, shotgun or a lavalier can be used for specific situations.
Benefit from the included Lithium-ion battery, providing an impressive 56 hours of battery life. Recharge the DS-9100 easily by connecting it to a PC or a compatible USB charger.

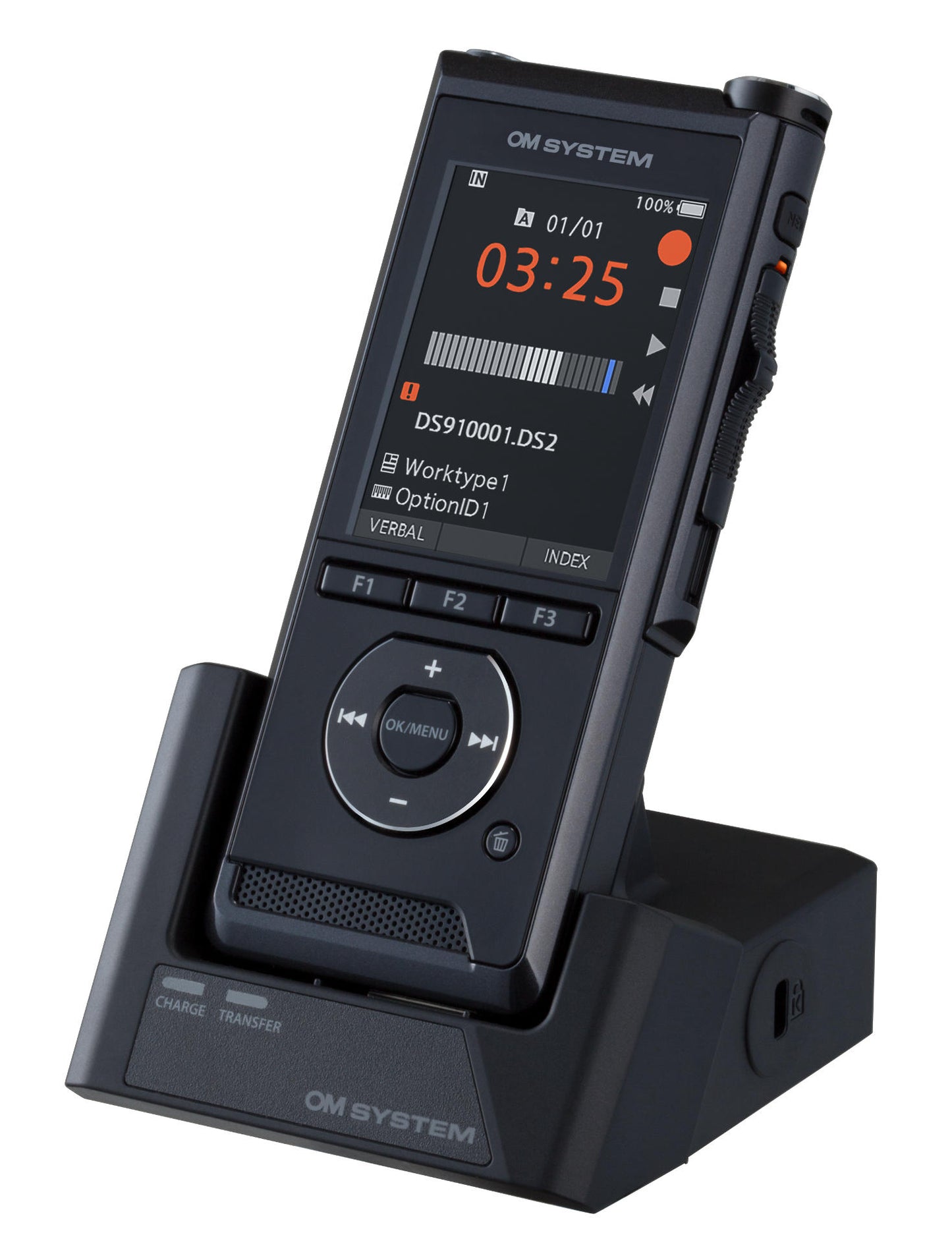

The CR-21 Docking Station* ensures a smooth connection to your PC. When paired with an OM SYSTEM AC Adapter, it efficiently charges the DS-9100 within 2 hours. Additionally, you have the option to connect a footswitch for remote device control, enabling hands-free dictation. (Footswitch is sold separately.

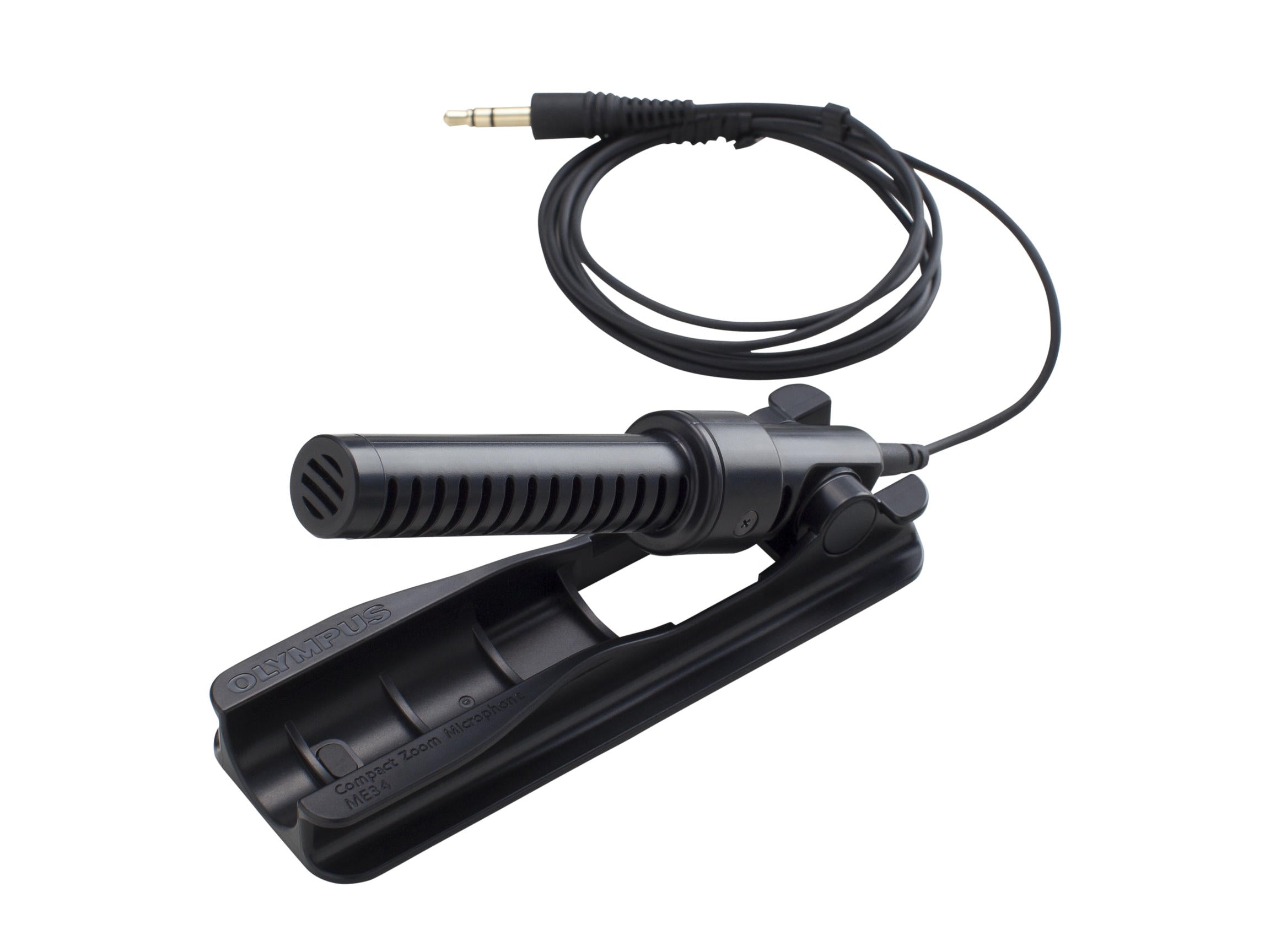

ME34
Features
● The directional microphone which can be recording
the sought sound clearly such as a lecture.
● The microphone cord can be put tidily by winding to the microphone stand.
● Battery-less plug-in-power system.
Specifications
Type: Electret condenser type
Directionality: Uni-directional
Frequency response: 70 – 15,000Hz
Sensitivity: – 40 dB (0dB=1V/Pa, 1kHz)
Output impedance: 1.1kΩ
Power supply: Plug-in-power system (2V – 10V)
Cord length: 1 m (3.28 ft)
Plug type: ø3.5 mm 3-pole mini-plug (monaural)
External dimensions:
112.8 mm x 34 mm x 17.5 mm (without protrusions)
Microphone dimensions: ø13 mm x 112.8 mm
Weight: Approx. 38 g (including the cords)
Performance precautions
• Use only with a recorder that can supply power to
external microphones.
• If you are using the ME34 microphone with a recorder
not made by OLYMPUS, we cannot guarantee the
specified sensitivity.
• Read manuals of the recorder you connect the
microphone with.
• Plugging in-and-out while recording will cause
malfunction or noise.
• As noise may affect surrounding electronic equipment,
disconnect the ME34 microphone from the recorder when
making the connection of the recorder to a computer.
Precautions
• For safety, do not leave this product within the reach
of infants and children.
• Do not disassemble the microphone.
• Do not subject the microphone to excessive shock.
• Avoid use or storage for long periods of time in
extremely hot and/or humid place.
• Do not bend or twist the plug part forcibly
