OM System ME31 Compact Gun Microphone

Features

• The directional microphone, which can be used in various ways such as recording a lecture
  and a field sound.
• The metal cutting body realized high rigidity.

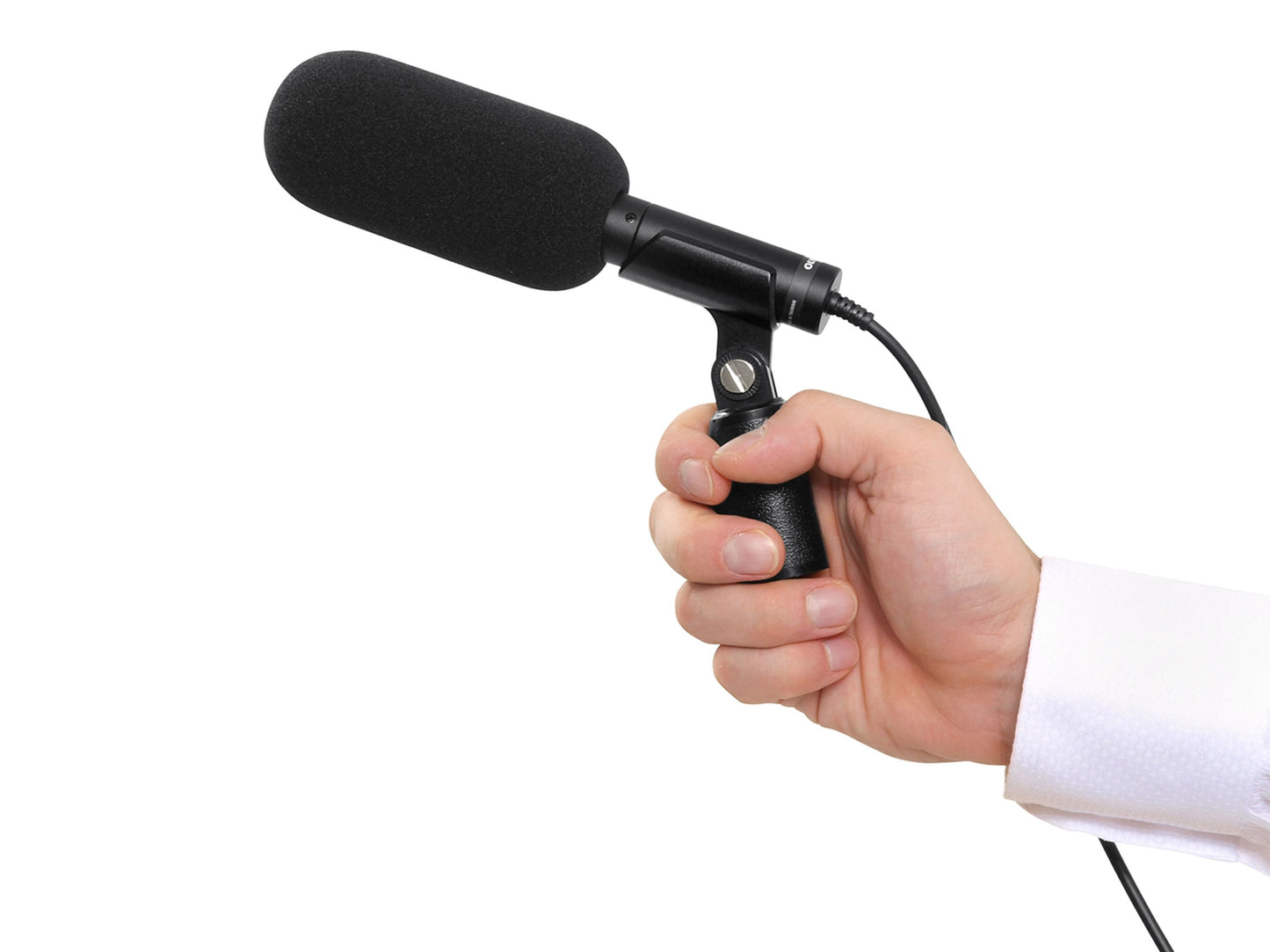

• The grip which can be attached to the microphone stand and the tripod is supplied.

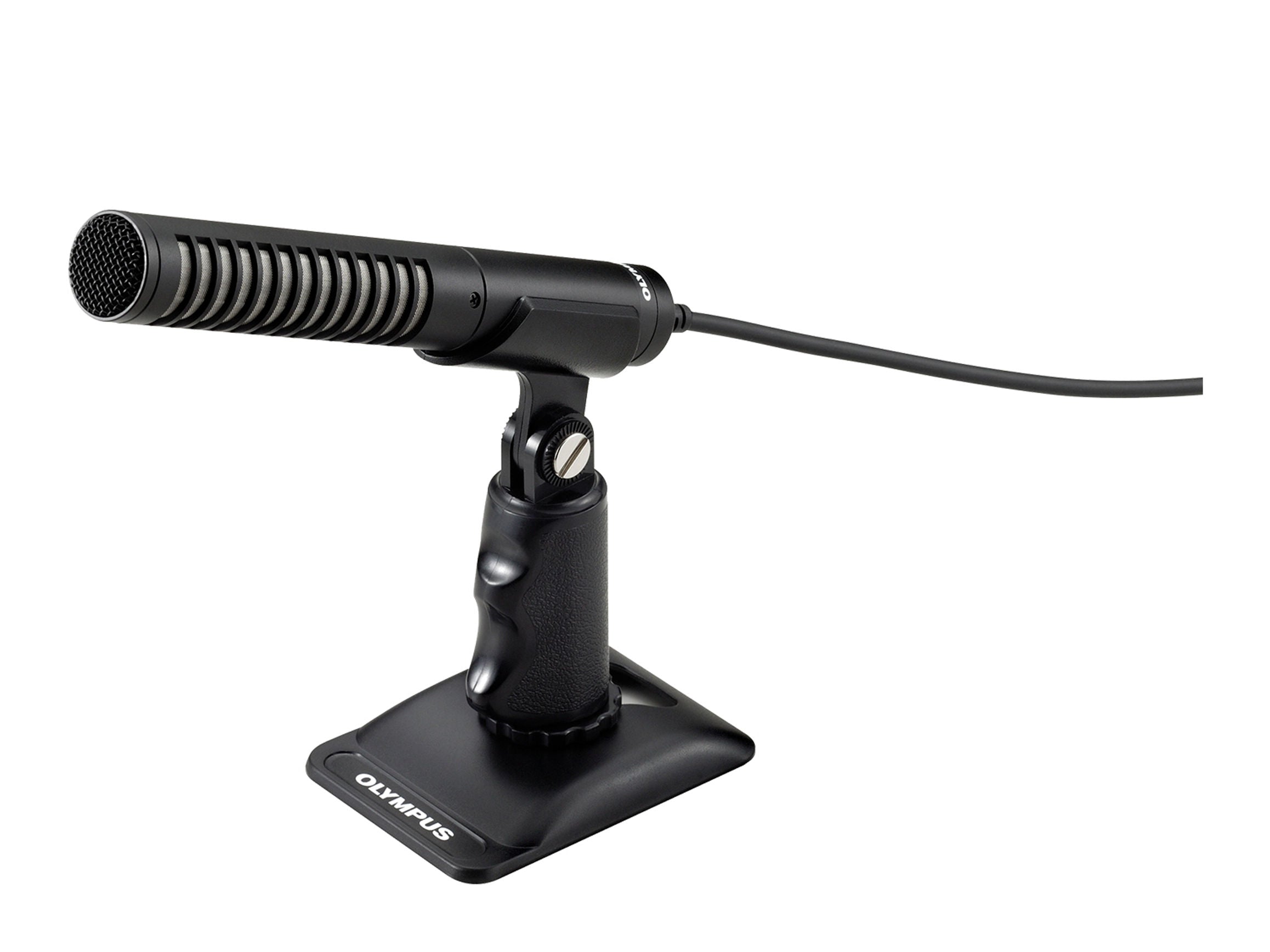

• The stand can be placed on a table with the grip attached.
• The wind screen is supplied
  to decrease the wind noise.

Precaution
• For safety, do not leave this product within the reach of infants and children.
• Do not disassemble the microphone.
• Do not subject the microphone to excessive shock.
• Avoid use or storage for long periods of time in extremely hot and/or humid place.
• Do not bend or twist the plug part forcibly.

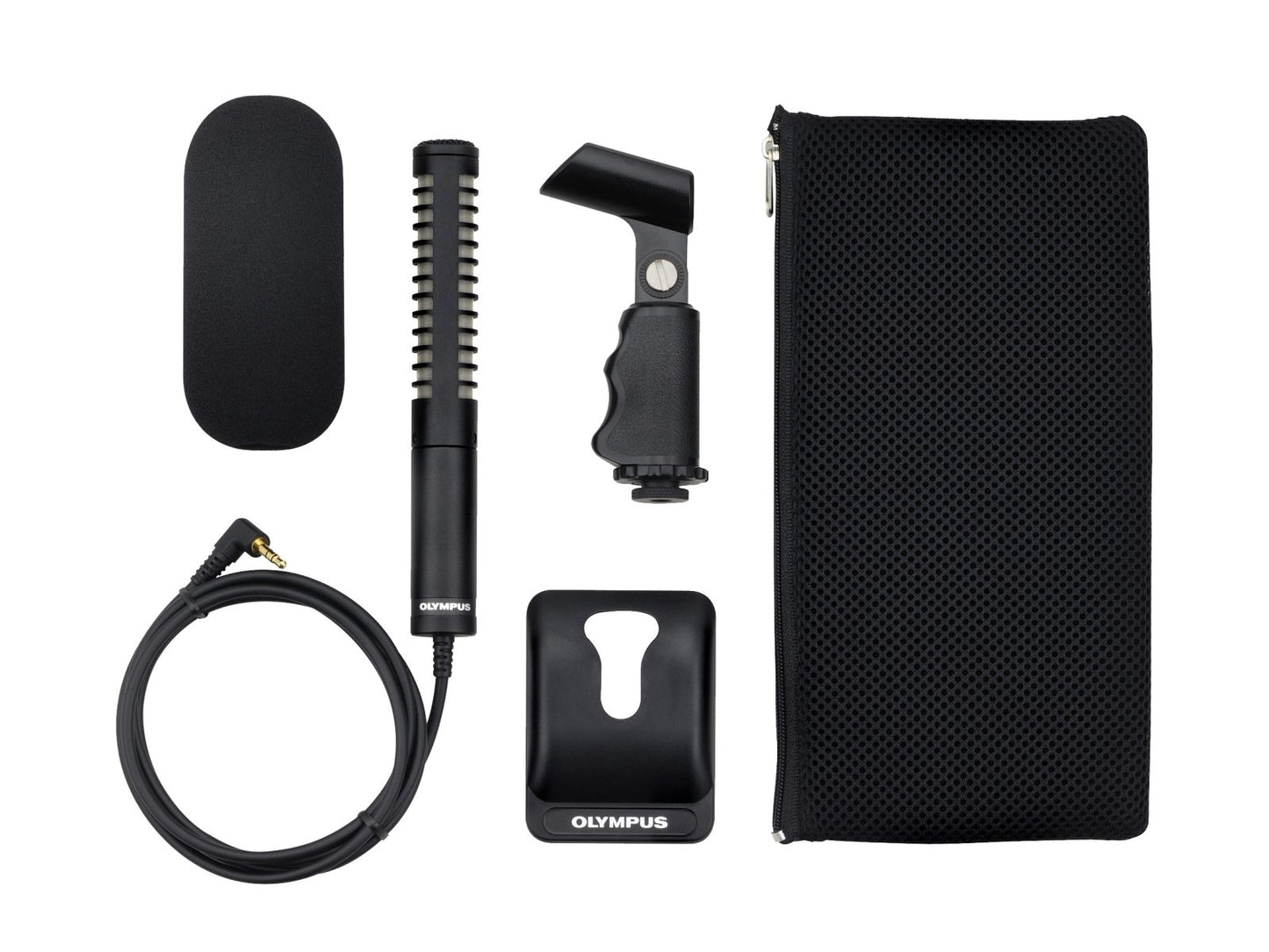

•  Case
•  Windscreen
•  Grip
•  Stand
• Stand adapter

Specifications

Type:

• Electret condenser microphone (ME31)

Directionality:

• Uni-directional

Frequency response:

• 70 Hz – 14,000 Hz

Sensitivity:

• -36.5 dB (0dB=1V/Pa, 1kHz)

Output impedance:

• 1.1 kΩ

Power supply:

• Plug-in-power system (2 V – 5 V)

Output Plug Type:

• ø3.5 mm gold-plated 3-prong monaural plug

External dimensions:

• ø21 mm (greatest dimension) x 155 mm

Cord length:

• 1.5m

Weight:

• Approx. 97.5 g (including the cords)

Performance Precautions

• Do not use this microphone with any recorder that cannot supply power to an external microphone.
• If you are using this microphone with a recorder not made by OLYMPUS, we cannot guarantee the specified sensitivity.
• Read manuals of the device you connect the microphone with.
• Plugging in-and-out while recording will cause malfunction or noise.
• As noise may affect surrounding electronic equipment, disconnect the ME31 when making
  connections to a recorder or computer.
