Olympus RS-31H Foot Pedal

Compatible with Olympus Dictation Management System (ODMS) software, ODMS Cloud and leading third-party applications, the four-pedal RS-31H footswitch combines the convenience of hands-free transcription with advanced features and configurability.

Main features:

• Easy control of transcription software (play, stop, rewind etc.)
• Extremely durable and long USB cable (2.5 m)
• Perfect ergonomics for any shoe size – Extra wide centre pedal
• Centre or top pedal can be locked
• HID keyboard mode (via free optional configuration tool)
• Keyboard shortcuts support (e.g. “Ctrl + Alt + P” or “Alt + 1”)
• Multimedia keys support
• Full compatibility with Olympus Dictation Management Software Release 7 (ODMS R7)
• Nonslip mat to keep it in place

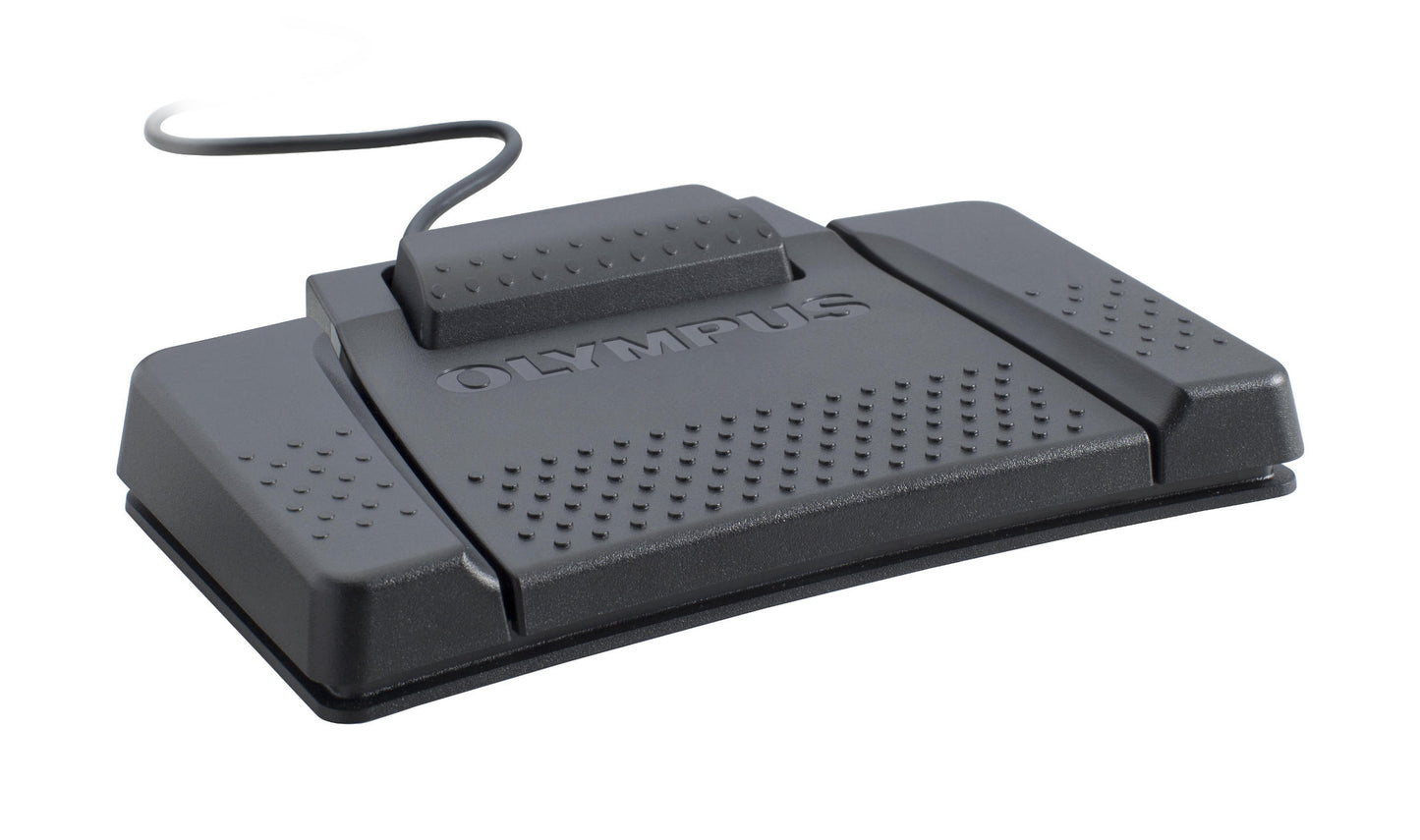

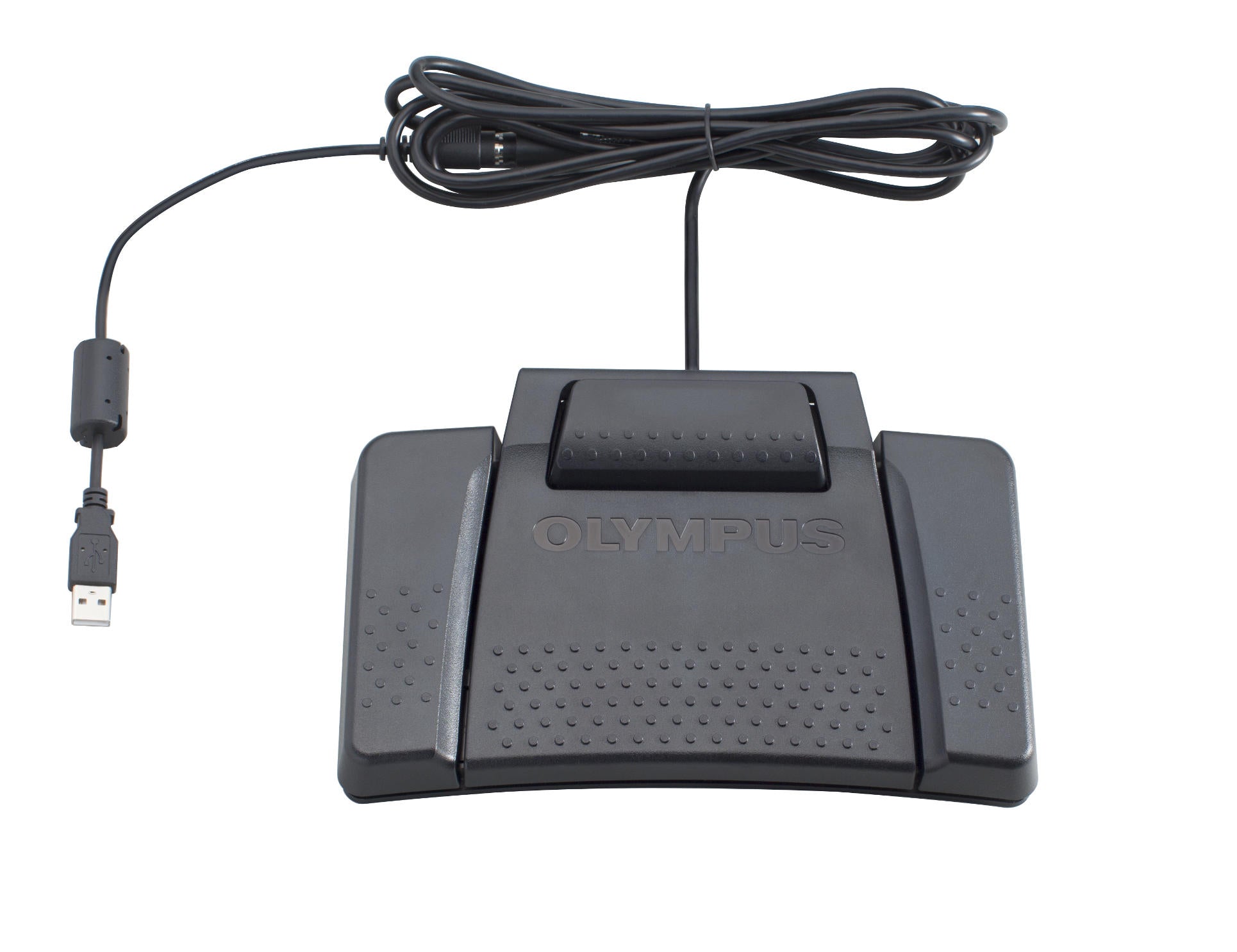

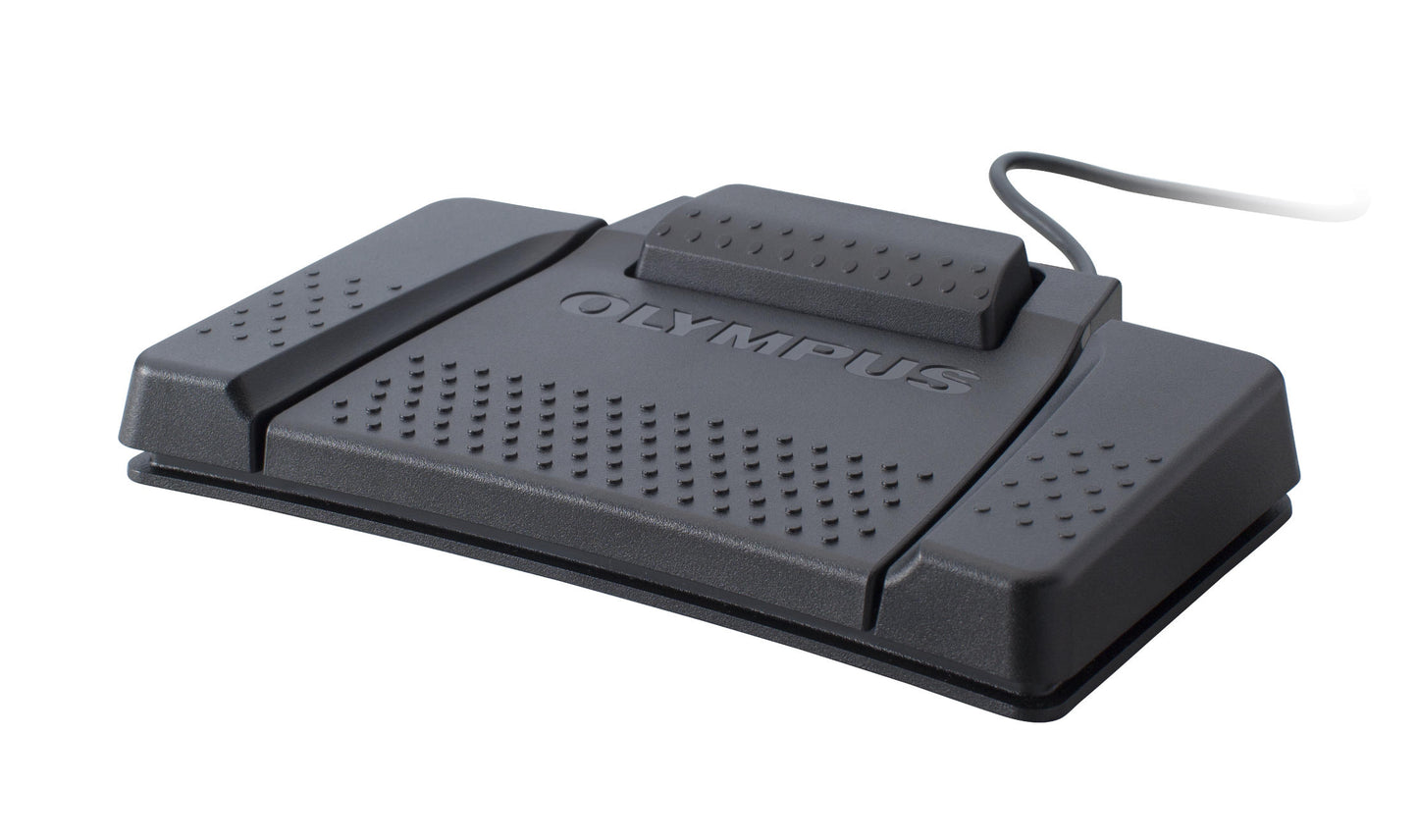

Olympus RS-31H four button foot pedal

Control Buttons

Number of buttons:

• 4

Lockable button(s):

• Top or centre pedal

Software configurable buttons

• Applied

Nonslip mat:

• Equipped

Dimensions / Weight

Cable length

• 2.5m

Weight

• 773g

Height

• 40.5mm

Width

• 214mm

Depth

• 144mm

Exterior

Available Colours

• Dark Grey

Connections

USB port

• 1.0/ 1.1/ 2.0/ 3.0/ 3.1 (Type A)

8 Pin jack

• Equipped (mini DIN)

Environment

Temperature

• 0 ‑ 42°C (operation)

Operation Modes

Olympus Mode

• Available (default)

HID keyboard Mode

• Available (optional)

Possible Pedal behaviour in HID Keyborad Mode

Single

• Triggers defined keyboard command on single click once.

Double

• Triggers defined keyboard command once on both press and release. Perfect for toggle functions like Play/Pause.

Long

• Triggers defined keyboard command continuously until pedal is released. (like a regular keyboard)

Dimensions / Weight

Cable length

• 2.5m

Weight

• 773g

Height

• 40.5mm

Width

• 214mm

Depth

• 144mm

Exterior

Available Colours

• Dark Grey

Connections

USB port

• 1.0/ 1.1/ 2.0/ 3.0/ 3.1 (Type A)

8 Pin jack

• Equipped (mini DIN)

Compatible Software

ODMS

• Version 6 (or higher)

DSS Player Standard

• Release 2

DSS Player for Mac

• Version 7.3.0 (or higher)

Note: Button configuration can not be customized on the application.

Olympus Sonority

• Version 1.0.1 (or higher)

DSS Player Pro

• Version 5.0 (or higher)

Footswitch Configuration Tool

• Applied

Third party software

• Must support control via keyboard commands.

Foot Switch Configuration Tool – Basic Features

Configuration of HID keyboard commands / shortcuts

• Applied

Supported Multimedia keys (Windows)

• Scan Next Track
• Scan Previous Track
• Stop
• Play/Pause
• Mute
• Increase volume
• Decrease volume
• Launch Media Player
• Launch standard email client
• Launch calculator
• Launch standard internet browser
• Search
• Home internet browser
• Back
• Forward
• Refresh
• Favorites

Supported Multimedia keys (Mac OS)

• Scan Next Track
• Scan Previous Track
• Eject
• Mute
• Increase volume

Switching between Olympus Mode and HID keyboard mode

• Available

Templates for foot switch settings

• Save & Load

Admin Write Mode

• Applied

Operating Systems & Requirements

Windows

• Operating system: Windows Vista/7/8/8.1/10

Macintosh

• Operating system: Mac OS X 10.9 ‑ 10.15

Compatible Olympus Hardware

Note

To operate the voice recorder it must be placed in its cradle. Find below the necessary combination.

CR20

• DS-F1 (VoiSquare)

CR15

• DS-7000
• DS-3500

CR10

• DS-5500
• DS-5000 / 5000ID
• DS-3400

CR3A

• DS-4000
• DS-3300

Olympus KP13 connector cable
