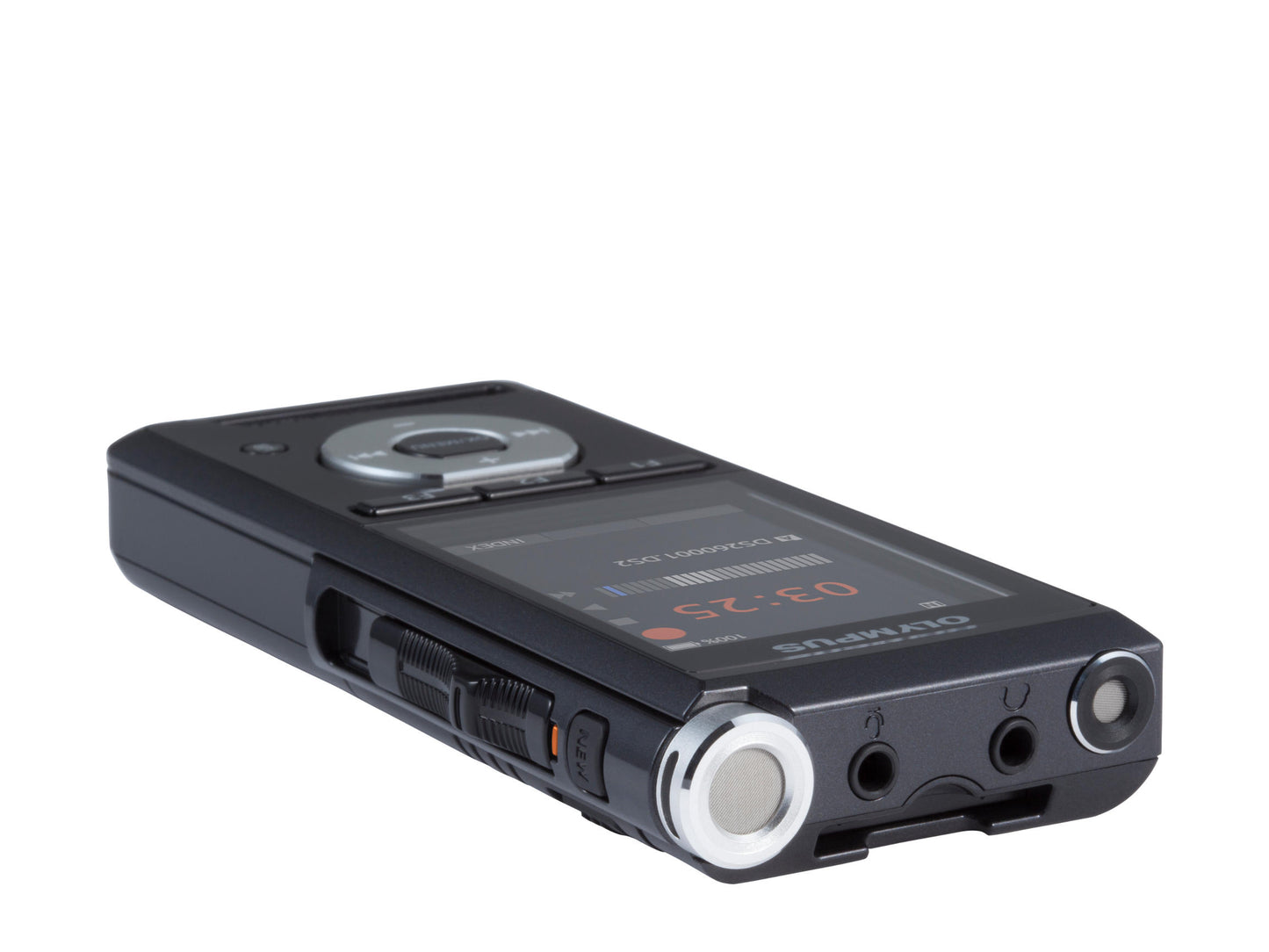

Olympus DS-2600 Digital Dictaphone

High Quality Performance in an Easy to Use Device

Stay intuitive with the new 4-position optical slide switch
The optical slide switch, simpler and more durable than the former mechanical slide switch, enables easy and intuitive operation, allowing you to focus your thoughts on your dictation. Start, stop, and edit your dictations easily via the robust slide switch without even looking at the device.

Save time: A whole range of editing options for easy text creation
There is more to creating text by speaking than just recording. The digital speech standard (DSS) allows for fast file editing (insert, overwrite, append, erase/cut).

Recorder comes with 2GB internal memory and SD card slot which will take 4GB – 32GB card.

High Quality Low-Noise Microphone
The DS series incorporates two large omni-directional microphones, which are independently housed for sound reproduction. A shock absorber covers the microphone unit and reduces touch noises from your hand to the body. A studio grade pop-filter blocks the wind noise generated from the mouth when talking into the microphone.

Including directional stereo recording
During meetings, many people often talk in confusion and from different directions. The DS-2600, when set to Conference Mode, is especially suitable for capturing meetings. You can record your meetings with ease, but still with outstanding quality.

Durable Body with Large Colour Display
The new impact resistant body, withstands drops of up to 0.5m, comes with a large 6cm colour LCD screen.

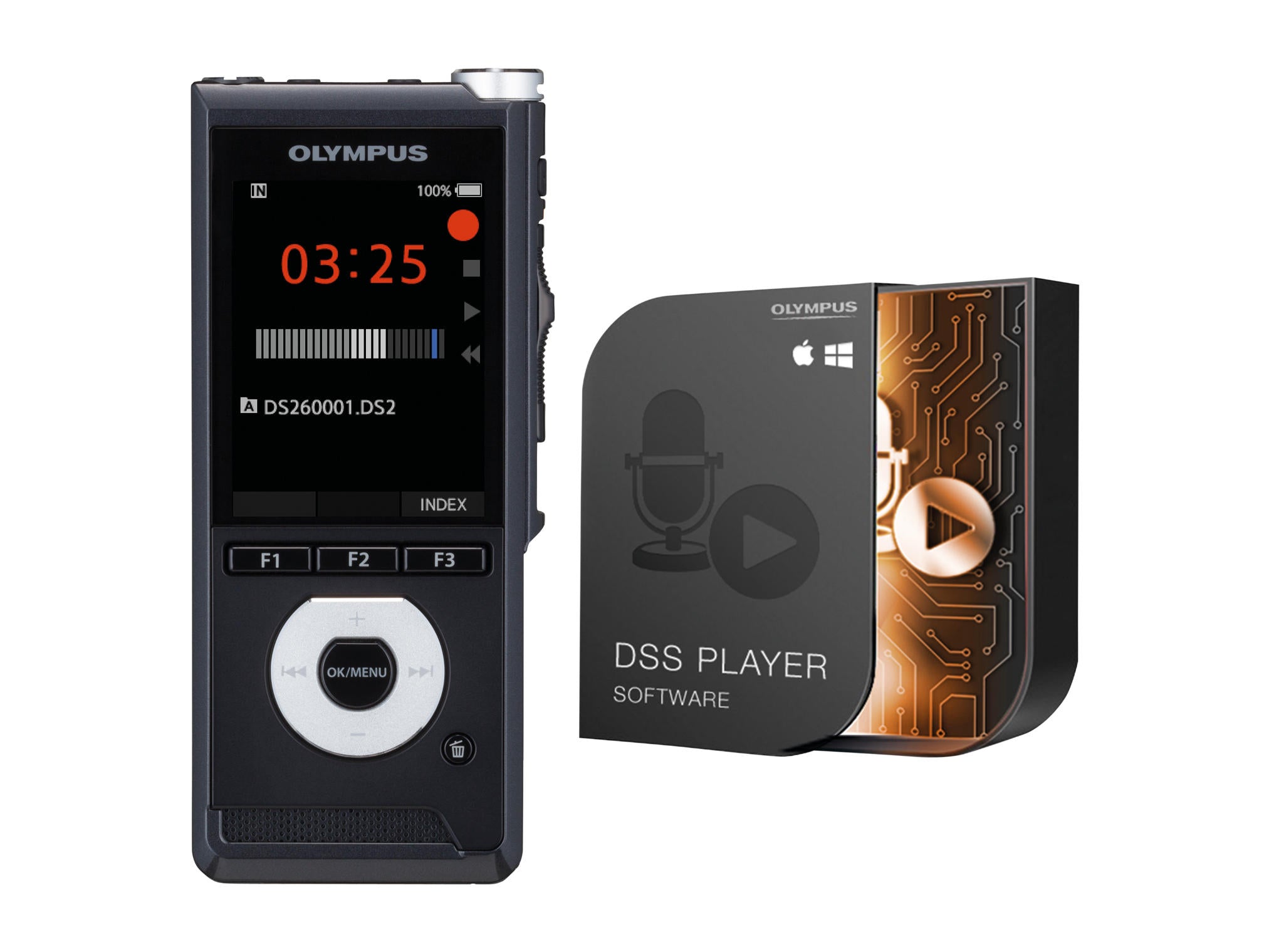

• Olympus DS‑2600 Digital Voice Recorder
• DSS Player Standard License (Mac & PC)
• Olympus CS-151 Carry Case
• Olympus KP30 Micro USB Cable
• Olympus LI‑92B Rechargeable Lithium‑Ion Battery
• Instruction Manual

Technical Specifications

Recommended Application Area

Application

• Dictation
• Interviews
• Meetings
• Speech-to-text
• USB functionality

 USB Functionality

USB Speed

• USB 2.0 High Speed

USB Classes

• USB Audio class
  (Full Duplex)
• Storage Class (High
  Speed)

USB Connection Type

• Type B (micro USB)

 Display

Display Type

• Full colour TFT display

Resolution

• 240 x 320 pixels

Display Size

• 36.72 x 48.96mm / 2.4”

Display Backlit

• LED (White)

Device operation

Main Switch

• Slide Switch

Programmable button

• F1 ‑ F3

Power switch

• Available

New button

• Available

Microphone System

Omni directional

• 2 x

Pop Filter

• 3 layers

Diameter

• 8mm

Internal microphones

• 50 – 15000Hz

Recording Modes

Recording format

• DSS Pro + DSS, Linear PCM, MP3

Sampling frequency

DSS Pro

• 16kHz (QP)
• 12kHz (SP)

DSS

• 12kHz

PCM

• 22.05kHz (Stereo /Mono)

MP3

• 44.1kHz (Stereo) / 128kbps
• 44.1kHz (Mono) /64kbps

Frequency response

DSS Pro

• 200 – 7000Hz (QP)
• 200 – 5000Hz (SP)

DSS

• 200 – 5000Hz

PCM

• (Stereo / Mono) / 50 – 8000Hz

MP3

• 128kbps (Stereo) /50 – 15000Hz
• 64kbps (Mono) / 50 – 13000Hz

Record function

Built-In Microphones

• 2x Omni‑directional

Recording Monitor

• Yes (variable)

Mic Modes

• Dictation: for recording dictation
• Conference: Stereo +Intelligent Auto Mode

Mic Sensitivity

• High / Middle / Low

VCVA

• Yes (adjustable)

Dictation features

Editing

• Overwrite
• Append Record
• Insert*
• Partial Erase*


Editing only for DSS / DSS PRO / WAV

* Insert in WAV only
with DS‑9000 & DS‑2600; Partial Erase only with DSS / DSS Pro

Voice Command

• Yes (only DSS / DS2)

Index

• Up to 32 per file

Playback function

Playback speed

• Slow (x0.5) / Normal / Fast (x1.5)

File operation

• Forward / Reverse Skip
• Fast forward and rewind
• Skip Playback

Data organization

Folders

• 5

Files per folder

• 200

Folder names changeable

• Available

Clock synchronization with PC

• Available

Workflow function

Author IDs

• 1

• OM System CR21 Docking Station
• OM System F-5AC for Audio AC Adapter
• OM System ME15 Tie Clip Microphone
• OM System ME30W Omni Directional 2 Channel Microphone Kit
• OM System ME33 Boundary Microphone
• OM System ME34 Compact Zoom Microphone
• OM System ME52W Uni Directional Mono Microphone with Clip
• OM System TP8 Telephone Pickup Microphone/earphone
