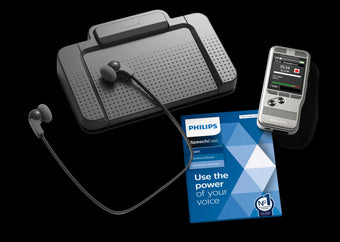

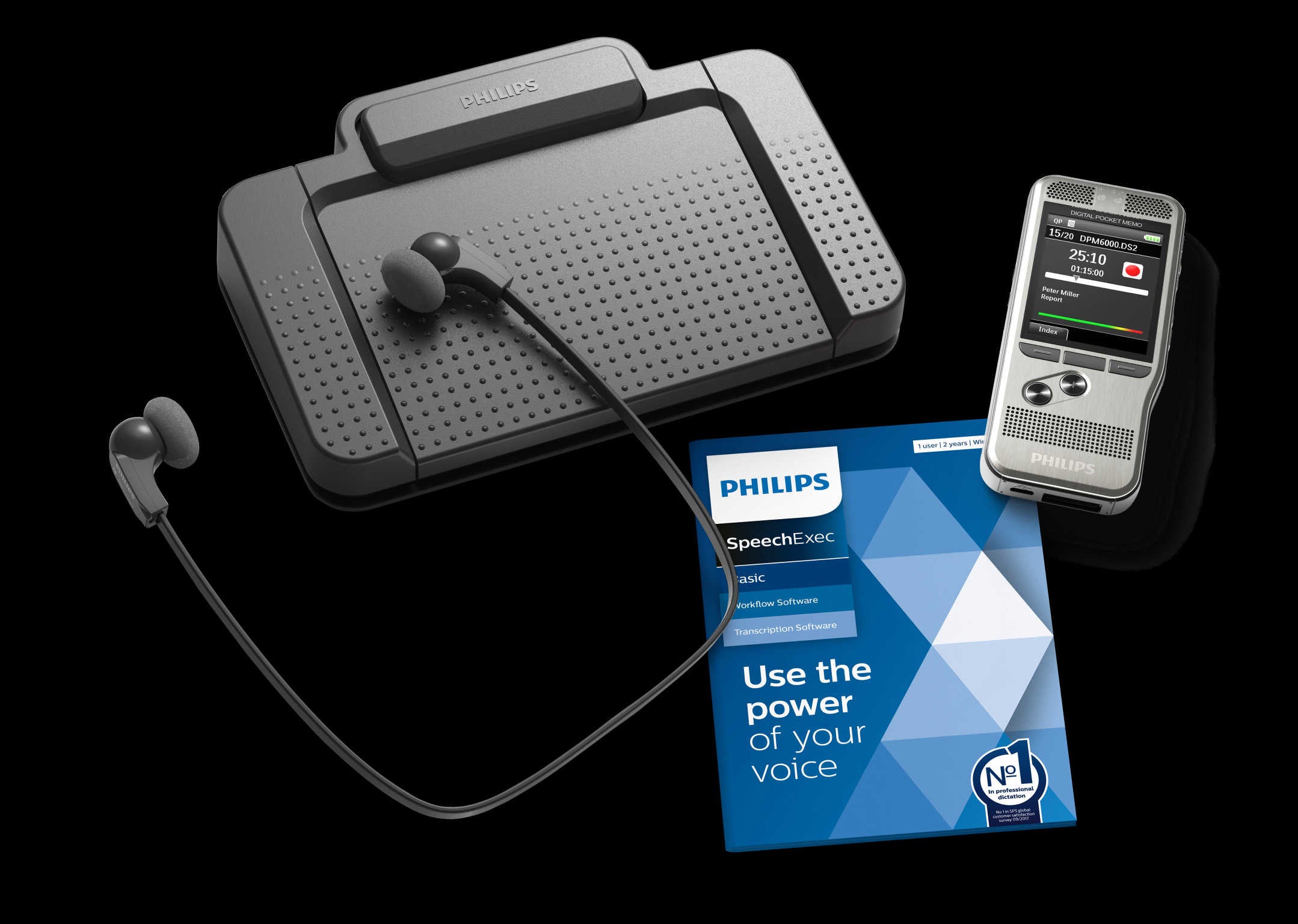

Philips DPM6700 Dictation/Transcription Starter Kit

Features

Two microphones for superior stereo audio recordings

The built-in microphones always deliver superior stereo audio recordings. The crystal clear recordings are perfectly suitable for speech recognition.

High recording quality in DSS and MP3 format

The DSS format was developed for use in digital voice recorders, allowing a high compression ratio with little loss of quality. The DSS format also allows you to store additional information in the file header, which facilitates the organization and the transcription of dictation files. The MP3 format is the common audio format for consumer audio storage, as well as a de facto standard encoding for the transfer and playback of music on digital audio players.

Convenient push-button for professional recording control

The recorder is designed for single-handed operation of all recording and playback functions, allowing easy and quick file editing (insert, overwrite, append) via convenient push-button operation.

Robust stainless steel casing for extra durability

The asymmetrical and ergonomic shape fits perfectly into your hand. Its slim and lightweight design maximizes comfort, even when working over longer periods of time. The brushed stainless steel creates a robust and highly durable protective shell around the device. The device is shockproof according to US military standard 516.6.

Large color display and clear user interface for easy, intuitive operation

The large full-color display offers sharp images, making it easier to see everything at first glance. The clear user interface is optimized for easy, intuitive operation.

Light sensor and Li-ion battery for extended use

The high-capacity Li-ion battery can be easily charged through a standard micro USB jack. The integrated light sensor guarantees extended battery life. The smart technology adjusts the brightness of the display, ensuring that your recorder will always be ready to work when you are.

Automatic file download via USB for quick transcription

When plugged in, the dictation device automatically uploads your audio files directly onto the computer and into the SpeechExec dictation workflow.

SpeechExec workflow software for efficient data management

The SpeechExec software organizes the workflow of dictation files and resulting documents between author and transcriptionist, and allows you to monitor the status of your work.

Ergonomic foot pedal for convenient playback control

The foot control was developed in cooperation with hospital ergonomists and day-to-day power users to ensure a perfectly smooth transcription process with minimal physical strain. Start, pause, rewind and fast-forward audio files with only a slight movement of the foot tip, keeping your hands free for uninterrupted typing. Magnetically controlled contact switches, rugged pedals and a waterproof design make it extremely durable and give the device and very long life.

Lightweight stereo headphones for enhanced wearing comfort

Lightweight, under-the-chin-style stereo headphones designed to deliver excellent sound quality, with soft ear cushions for enhanced wearing comfort.

Priority information for getting urgent jobs processed first

With the included priority setting option, urgent recordings can be processed first. This makes sure important recordings are not overseen and helps you and your transcriptionists manage your workloads better.

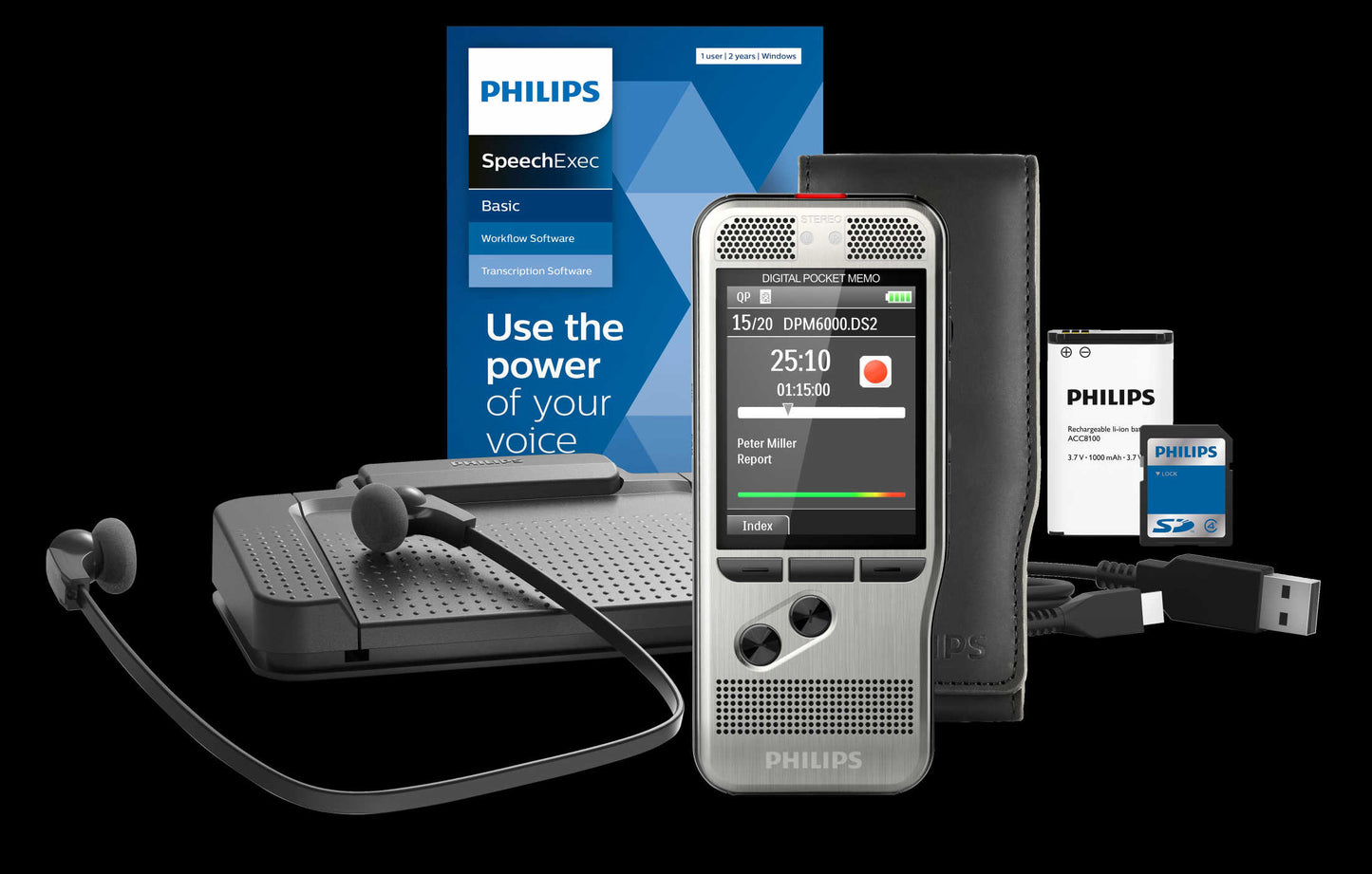

• Philips DPM6000 digital dictation recorder
• Philips ACC2330 four pedal footswitch
• Philips LFH0334 stereo headphones
• 16GB SD card
• SpeechExec Transcribe software
• SpeechExec Dictate software
• Philips ACC8100 rechargeable battery
• USB cable
• Pouch
• Quick start guide

Connectivity

Headphones:

3.5 mm

Microphone:

3.5 mm

USB:

micro USB 2.0

Docking connector

Memory card slot

Display

Type:

color TFT

Diagonal screen size:

2.4 inches / 6.1 cm

Resolution:

320 × 240 pixels

Storage media

Exchangeable memory card

Memory card types:

SD/SDHC, up to 32 GB

Mass storage class compliant

Data transfer speed:

6.75 MB/s read speed, 5.0 MB/s write speed

Audio recording

Recording format:

DSS (Digital Speech Standard), MP3, PCM

Built-in microphones:

2 omnidirectional microphones for stereo recording

Recording modes:

DSS QP (.ds2/mono), DSS SP (.dss/mono), MP3 (.mp3/stereo), PCM
Voice (.wav/mono), PCM Stereo (.wav/stereo)

Bit rate:

13.7 kbit/s (DSS SP), 28 kbit/s (DSS QP), 192 kbit/s (MP3), 353
kbit/s (PCM Voice), 705 kbit/s (PCM Stereo)

Edit modes:

insert (DSS), overwrite (DSS, MP3, PCM), append (DSS, MP3, PCM)

Recording time (4 GB memory
card):

700 hours (SP), 350 hours (QP), 50 hours (MP3), 27 hours (PCM
Voice), 13 hours (PCM Stereo)

Sample rate:

44.1 kHz (MP3), 22.05 kHz (PCM), 16 kHz (DSS QP), 12 kHz (DSS
SP)

Sound

Speaker type:

built-in round, dynamic speaker

Speaker diameter:

28 mm

Acoustic frequency response:

300 – 7500 Hz

Speaker output power:

> 200 mW

Power

Battery type:

Philips Rechargeable Li-ion Battery ACC8100

Battery capacity:

1000mAh

Battery lifetime:

up to 30 hours of recording (DSS mode)

Standby time:

more than 200 days

Charging time (full charge):

3 hours

Dimensions

Product dimensions:

53 × 123 × 15 mm / 2.1 × 4.8 × 0.6 inches

Weight:

117 g/4.1 oz including battery and memory card

Foot control

Connectivity:

USB plug

Product dimensions:

198 × 54 × 170 mm/7.8 × 2.1 × 6.7inches

Weight:

650 g/23 oz

Stereo headphones

Style:

under chin

Acoustic system:

open

Magnet type:

neodymium

Diaphragm:

PET dome

Voice coil:

copper

Sound quality:

optimised for voice playback

Impedance:

2 × 32 Ohm

Maximum power input:

2 × 10 mW

Sensitivity:

103 dB

Speaker diameter:

14 mm/0.6 in.

Cable connection:

one-sided

Cable length:

3.0 m/10 ft.

Connector:

3.5 mm, right-angled, stereo

Connector finish:

Gold-plated

Product dimensions (W × H × D):

16 × 15 × 1.8 cm/6.3 × 5.9 × 0.7 in.

Weight:

53 g/1.9 oz

System requirements for Philips SpeechExec software

Processor:

Intel dual core or equivalent AMD processor, 1 GHz or faster
processor

RAM:

4 GB (64 bit)

Hard-disk space:

100 MB for SpeechExec software, 4.5 GB for Microsoft .NET
Framework

Operating system:

Windows 11 Pro, Windows 10 Pro/Enterprise (64 bit)

Graphics:

DirectX-compliant graphics card with hardware acceleration
recommended

Sound:

Windows-compatible sound device

Free USB port

Internet connection

Green specifications

Compliant to 2011/65/EU (RoHS)

Lead-free soldered product

Operation conditions

Temperature:

-5° – 45° C/23° – 113° F

Humidity:

10 % – 90 %, noncondensing

• Philips ACC8120 docking station
• Philips LFH2210 - foot pedal for hands free dictation
• Philips ACC8100 rechargeable Li-ion battery
• Philips LFH9172 boundary microphone
• Philips LFH9162  telephone pickup microphone
• Philips LFH9173 tie clip microphone
• Philips SpeechLive 12-month subscription  - cloud solution
