OM System RM-4110S USB Microphone

Advanced Noise Cancelling Technology

Intelligent dual microphones control the directionality to keep the focus on the person dictating and suppress non-voice noise eliminating anything outside the human frequency range. In addition, a triple-layer studio-quality filter blocks traditionally problematic sounds including wind breath noise. The RM-4110S  picks up accurate spoken audio without any distortion while suppressing unwanted noise, making controlling desktop dictation easy.

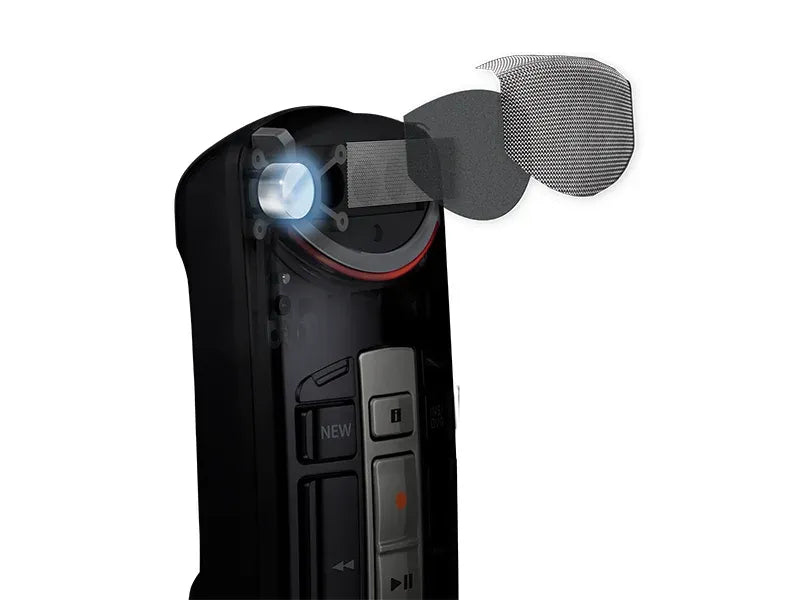

Professional Studio-Quality Filtering

The triple-layer pop filter uses the same technology found in professional studio recording microphones to block unwanted but difficult-to-eliminate sounds such as breath and wind vibrations.

Ergonomic Design Features

The RM-4110S comes with optimised button layout, four customisable function buttons, a durable high-reliability optical slide switch, clickable trackball with accelerated cursor motion and large Rec LED indicator for easy visual cue of device operation.

Intuitive Configuration

The RM-4110S is easily configurable with third-party applications without having Olympus software running. Preset recording modes for each recording environment. Preset button modes for Dragon and Windows Speech Recognition.  Using the HID Keyboard Mode, configure hot keys for applications to the buttons on the RM-4110S.

Antimicrobial Housing

The housing and buttons on the RM-4110S are made of antimicrobial coating material (ISO 22196). The “tolerance to alcohol” design allows for superior cleanability.

Acceleration Sensor with Automatic Mic Mute & Hands Free Mode

Built in acceleration sensor detects the position of the RecMic and adjusts accordingly –

place the RM-4110S on a desk – microphone automatically mutes

pick up the RM-4110S – microphone automatically resumes recording

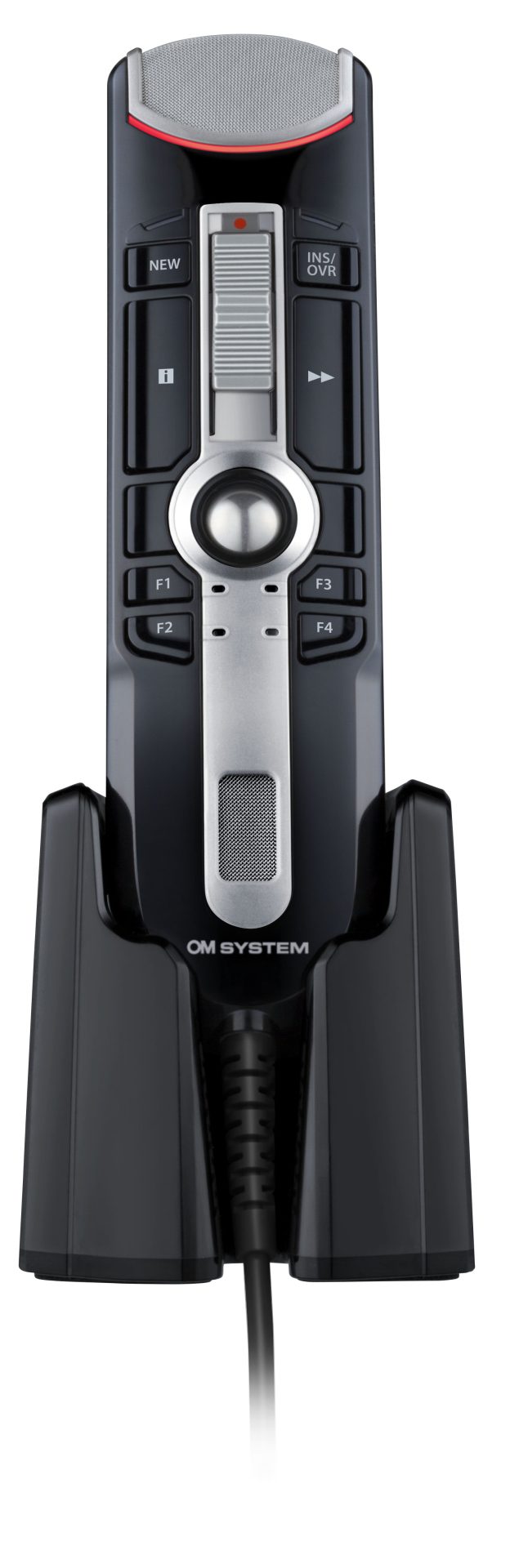

place the RM-4110S in the stand – microphone automatically sets to Hands-Free Dictation Mode

Noise Analyser

Determine whether your recording environment is suitable for speech recognition – press and hold two buttons while the RecMic analyses the environmental noise and then indicates by LED if the environment is good for speech recognition.

Learn more about the RM4110S here

• RM‑4110S Slide Switch & Trackball USB Microphone
•  Microphone stand
•  Quick User Guide (EN/CZ/DK/DE/ES/FI/FR/IT/LIT/NL/PL/RUSV)
•  Olympus RecMic Configuration Tool (RCT) (to be downloaded from website)

USB functionality

USB Speed

• USB 2.0 High Speed

USB Classes

• USB Audio class
• HID mouse
• HID vendor (default) / keyboard

Device operation

Main Switch

• Slide Switch (RM‑4100S, RM‑4110S)
• Push (RM‑4010P, RM‑4015P)

Programmable button

• 14 Low noise buttons

Optical trackball

• Yes, incl. left mouse click function (RM‑4010P, RM4015P, RM‑4110S)

Click lock function for drag & drop

• Yes (only for models with trackball)

Function buttons

• 4 (RM‑4100S: 3 additional F‑Buttons)

Acceleration sensor

• Available

Recording Modes

Recording format

• PCM (mono, 16bit, 44.1kHz sampling)

Record function

Noise cancellation

• Variable

Active Directionality

• Variable

Noise analyzer

• Available

Pop-filter

• 3 layers

Operation Modes

Olympus Mode

• Available (default)

HID Keyboard Modes

• Custom mode (Customizable button setting to control any third party application (via RCT ‑ RecMic Configuration Tool software)
• Dragon Mode (Predefined setting for Dragon Speech Recognition)
• Windows Speech Recognition Mode (Predefined setting for Windows Speech Recognition)

Recording Scenes

• Quiet environment
• Noisy environment for Speech Recognition
• Noisy environment for Classic Dictation

Other Features

Automatic stand detection

• Available

Automatic microphone mute

• Yes, when placing on desk

Storage Media

Internal memory

• No
• 8GB (RM‑4015P)

Specialized features for medical environment

Chemical resistance

• Ethanol Isopropanol

Antimicrobial Housing

• Polygiene®

Compatible Software

Olympus RecMic Configuration Tool (RCT)

• Version: 1.0 or higher

Third party software

• Any software which can be controlled via keyboard shortcuts (e.g. Ctrl + H)

Interfaces Input

Microphone type

• Intelligent 2 microphone system

Frequency response

• 200 – 9000Hz

Microphone sensitivity / gain

• ‑ 39dBv

Input Level

• ‑ 48dBv / + 86dB SPL

Signal-to-noise ratio

• 59dBA

Microphone characteristics

• Omni‑directional

Interfaces Output

Speaker

• 28mm Integrated front loudspeaker

Max. working output

• 350mW

Power Supply

Standard USB Mode

• 278mA or less

Low Power USB mode

• 80mA or less

Dimensions

Cable length

• 2.5m

Height

• 171mm

Width

• 32mm

Depth

• 43.2mm

Weight

• 185g including cable
• 170g (RM‑4100S)
• 116g without cable (RM‑4010P/RM‑4015P/RM‑4110S)

Exterior

Housing colour

• Black

Symmetric Housing

• Suitable for both left and right handed people

Haptics

• Smooth Surface coating for minimal touch noises (UV coated)

LED

• 7

Operating Systems & Requirements

Windows

• Windows 7/8.1/10

System Requirements of Olympus RecMic Configuration Tool (RCT)

Operating system:

• Microsoft® Windows® 7 • Ultimate/Enterprise/Professional SP1 (x86/x64)
• Microsoft® Windows® 8.1/10 • Enterprise/Pro (x86/x64)

CPU:

• 1GHz or higher

Memory:

• 1 GB or more (x86)/2 GB or more (x64) (Microsoft® Windows® 7/8.1)
• 2 GB or more (Microsoft® Windows® 10)

Hard disk space:

• 30 MB or more (A separate space is required to install .NET Framework.)

.NET Framework

• Version: 4.6

Dragon speech recognition software

• Dragon Professional/Legal v14 ‑ 15
• Dragon Medical Practice Edition 2 ‑ 3

Box Contents

Dictation with slide switch & trackball

•  RM‑4110S
•  Microphone stand
•  Quick User Guide (EN/CZ/DK/DE/ES/FI/FR/IT/LIT/NL/PL/RUSV)
•  Olympus RecMic Configuration Tool (RCT) (to be downloaded from website)

Premium kit Dictation with slide switch & trackball

•  RM‑4110S
•  ODMS R7 DM Single License
•  DSS Player for MAC (Software for Macintosh)
•  Microphone stand
•  Quick User Guide (EN/CZ/DK/DE/ES/FI/FR/IT/LIT/NL/PL/RUSV)
•  Olympus RecMic Configuration Tool (RCT) (to be downloaded from website)
